ME-SA1-C6-7I-D10-R3

Overview

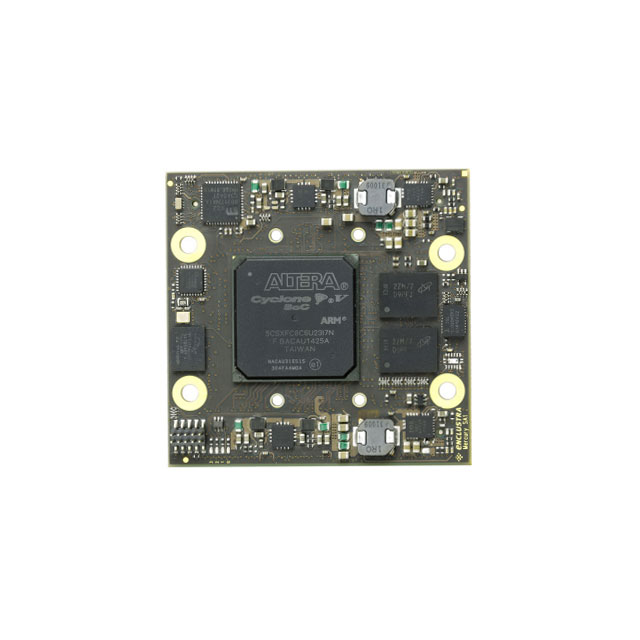

The Enclustra ME-SA1-C6-7I-D10-R3 is a Mercury SA1 System-on-Chip module based on the Intel Cyclone V SoC device (5CSXFC6C6U23I7N). It integrates an ARM dual-core Cortex-A9 processor with a 28nm FPGA fabric. The module includes 1GB of DDR3L SDRAM, 64MB Quad SPI flash, and supports PCIe Gen1 x4 connectivity. Designed for industrial environments (-40 to +85°C), it features Gigabit Ethernet, USB 2.0 OTG, and multi-gigabit transceivers. The compact form factor measures 56x54mm and accepts a 5-15V supply voltage.

Feature Summary

• Intel Cyclone V SoC with ARM Cortex-A9 and 28nm FPGA fabric
• 1GB DDR3L SDRAM and 64MB QSPI Flash memory
• PCIe Gen1 x4 interface and 28 Multi-Gigabit Transceiver signals
• Industrial temperature range operation (-40 to +85°C)

Applications

• Embedded processing systems requiring heterogeneous computing
• Rapid prototyping using Mercury baseboards
• Industrial automation and control applications

Procurement Notes

Verify the specific revision number associated with the product model. Ensure compatibility with the required baseboard connector type, such as Hirose FX10 headers. Confirm that the design accounts for the irreversible nature of FPGA fuse blowing, which voids warranty if performed incorrectly.

Selection Notes

Select this module when an integrated ARM processor and FPGA fabric are required in a small footprint. The industrial temperature rating makes it suitable for harsh environments. Consider the available I/O banks and MGT signals for interface requirements. Verify power supply constraints against the 5-15V input specification.

Part Context

This part belongs to the Mercury SA1 family of SoC modules from Enclustra. It utilizes the Intel Cyclone V architecture. The 'C6' indicates the specific device variant, '7I' denotes the industrial temperature grade, and 'D10' refers to the memory configuration. Revision 3 introduces specific hardware updates compared to earlier versions.

Replacement Considerations

Check for updated revisions within the same product line. Custom configurations may be available directly from Enclustra. Baseboard compatibility must be verified when switching between different Mercury module types due to varying pinouts and mechanical footprints.
