MEA2010PE360T001

Overview

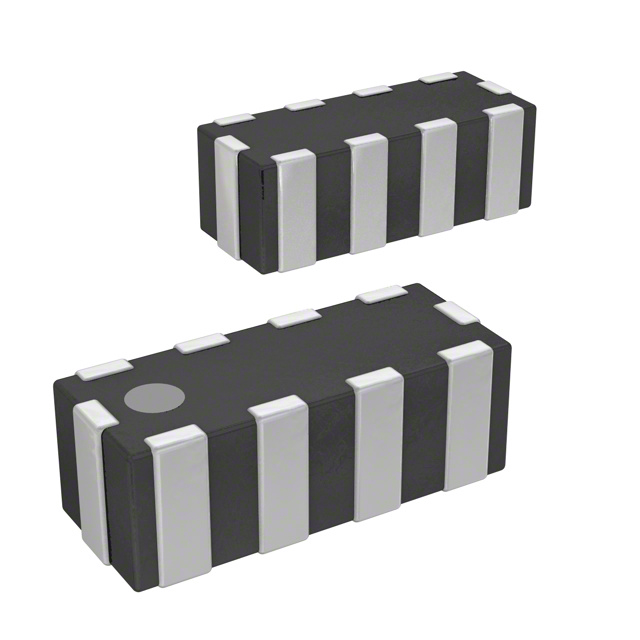

The TDK MEA2010PE360T001 is a surface-mount EMI filter circuit designed for signal line noise suppression. It features an LC (T) filter topology with a capacitance of 36 pF and a cutoff frequency of 220 MHz. The component supports a maximum current rating of 100 mA and operates within a voltage range up to 6.3 V. Housed in a compact 0804 (2010 metric) package measuring 2.0 mm x 1.0 mm x 0.7 mm, it provides attenuation of 20 dB across the 470 MHz to 2 GHz frequency range. Operating temperatures span from -40°C to +85°C.

Feature Summary

• Provides effective electromagnetic interference suppression for high-frequency communication bands
• Utilizes a compact surface-mount design suitable for space-constrained mobile applications
• Integrates a low-pass filter structure to attenuate noise while preserving signal integrity

Applications

• Noise suppression for mobile phone television frequency bands
• Signal line filtering in handheld communication devices
• EMI mitigation in data lines for portable electronics

Procurement Notes

Verify the specific suffix TA0G versus T001 against official TDK documentation, as suffixes may indicate packaging or minor specification variations. Confirm RoHS compliance status through the manufacturer's latest product declaration. Ensure the selected variant matches the required termination type and reel specifications for automated assembly processes.

Selection Notes

Select this component when designing circuits requiring noise reduction in the 470 MHz to 2 GHz range. The 36 pF capacitance and 220 MHz cutoff frequency make it suitable for protecting sensitive signal lines in mobile devices. Consider the 100 mA current rating and 6.3 V voltage limit to ensure compatibility with the target system's electrical requirements.

Part Context

This part belongs to the MEA-PE series of EMI filter arrays from TDK Corporation. These components are engineered specifically for suppressing electromagnetic interference in mobile telecommunications equipment. The series offers various capacitance values and package sizes to accommodate different board layout constraints and filtering needs in consumer electronics.

Replacement Considerations

MEA1608PE360TA0G is a documented alternative in the same family, offering identical electrical characteristics but in a smaller 0603 package. Verify footprint compatibility before substitution.
