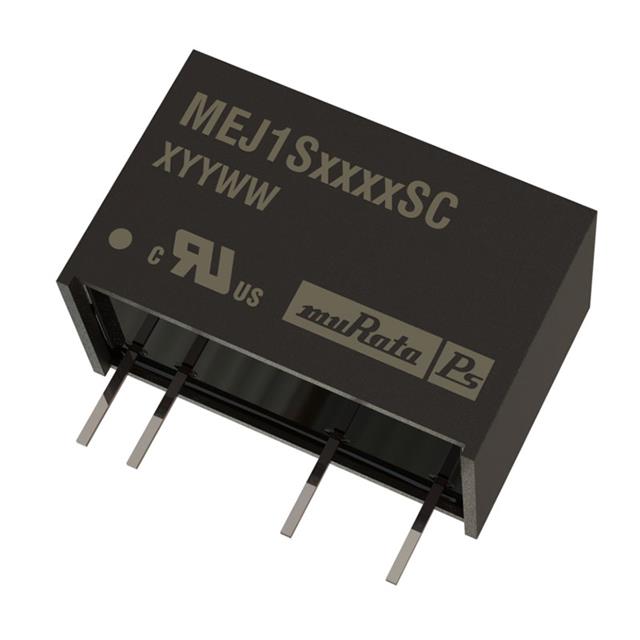

MEJ1S1512SC is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Murata Power Solutions Inc.. Its product description is DC DC CONVERTER 12V 1W. Review the specifications below when checking this part for your BOM.
DC DC Converters specifications for MEJ1S1512SC
- Description：DC DC CONVERTER 12V 1W
- Series：MEJ1 (1W)
- Mfr：Murata Power Solutions Inc.
- Package：Tube
- Type：Isolated Module
- Number of Outputs：1
- Voltage - Input (Min)：13.5V
- Voltage - Input (Max)：16.5V
- Voltage - Output 1：12V
- Voltage - Output 2：-
- Voltage - Output 3：-
- Voltage - Output 4：-
- Current - Output (Max)：83mA
- Power (Watts)：1 W
- Voltage - Isolation：5.2 kV
- Applications：ITE (Commercial), Medical
- Features：SCP
- Operating Temperature：-40°C ~ 85°C
- Efficiency：76.50%
- Mounting Type：Through Hole
- Package / Case：7-SIP Module, 5 Leads
- Size / Dimension：0.77" L x 0.39" W x 0.50" H (19.7mm x 10.0mm x 12.7mm)
- Supplier Device Package：-
- Control Features：-
- Approval Agency：-
- Standard Number：-
- Grade：-
- Qualification：-
DC DC Converters datasheet and documents for MEJ1S1512SC
