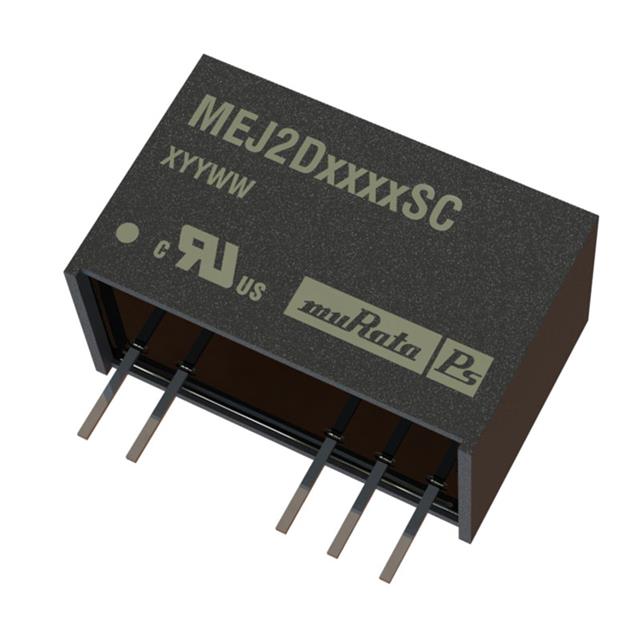

MEJ2D0505SC is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Murata Power Solutions Inc.. Its product description is DC DC CONVERTER +/-5V 2W. Review the specifications below when checking this part for your BOM.
DC DC Converters specifications for MEJ2D0505SC
- Description：DC DC CONVERTER +/-5V 2W
- Series：MEJ2 (2W)
- Mfr：Murata Power Solutions Inc.
- Package：Tube
- Type：Isolated Module
- Number of Outputs：2
- Voltage - Input (Min)：4.5V
- Voltage - Input (Max)：5.5V
- Voltage - Output 1：5V
- Voltage - Output 2：-5V
- Voltage - Output 3：-
- Voltage - Output 4：-
- Current - Output (Max)：200mA, 200mA
- Power (Watts)：2 W
- Voltage - Isolation：5.2 kV
- Applications：ITE (Commercial), Medical
- Features：-
- Operating Temperature：-40°C ~ 85°C
- Efficiency：76%
- Mounting Type：Through Hole
- Package / Case：7-SIP Module, 5 Leads
- Size / Dimension：0.77" L x 0.39" W x 0.50" H (19.7mm x 10.0mm x 12.7mm)
- Supplier Device Package：-
- Control Features：-
- Approval Agency：-
- Standard Number：-
- Grade：-
- Qualification：-
DC DC Converters datasheet and documents for MEJ2D0505SC
