MEM1608D301RT001

Overview

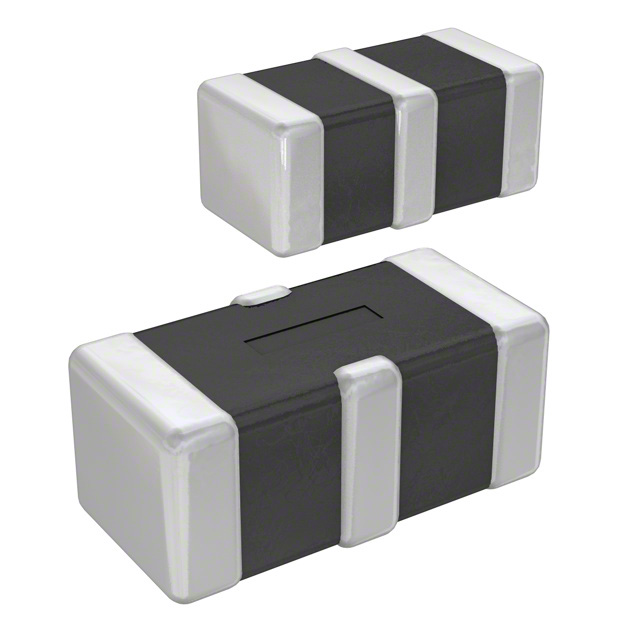

The MEM1608D301RT001 is a TDK EMI filter circuit designed for surface mount applications. It features an LC (T-Type) architecture with second-order low-pass filtering characteristics and a single channel configuration. The component operates within a temperature range of -40°C to +85°C and supports a rated voltage of 6.3V with a current rating of 200mA. Its physical dimensions are 1.6mm in length, 0.8mm in width, and 0.7mm in height, conforming to the 0603 (1608 metric) package standard. The device exhibits a cutoff frequency of 300MHz and provides attenuation of 15dB between 800MHz and 1500MHz.

Feature Summary

• LC (T-Type) second-order low-pass filter topology
• Compact 0603 surface mount footprint
• Single-channel signal processing capability

Applications

• Data lines for mobile devices

Procurement Notes

Verify the specific suffix RT001 against official TDK documentation to confirm reel packaging specifications and tape-and-reel parameters. Ensure compatibility with automated pick-and-place equipment regarding the 0603 package dimensions. Confirm RoHS compliance status through the manufacturer's environmental declaration before integration into regulated assemblies.

Selection Notes

Select this component when designing circuits requiring compact EMI suppression for high-speed data signals in portable electronics. The 200mA current rating and 6.3V voltage limit define the operational boundaries for power handling. The 300MHz cutoff frequency determines the transition point for noise attenuation relative to the target signal bandwidth.

Part Context

This part belongs to the TDK MEM series of multi-layer ceramic EMI filters. These components utilize proprietary internal structures to achieve high attenuation in small form factors. The MEM series is engineered specifically for protecting sensitive electronic interfaces from electromagnetic interference in consumer and industrial applications.

Replacement Considerations

Cross-reference with other MEM series variants or MMZ ferrite beads if impedance characteristics differ. Verify that substitute components match the 0603 footprint and electrical ratings for direct replacement.
