MEM2012S101RT

Overview

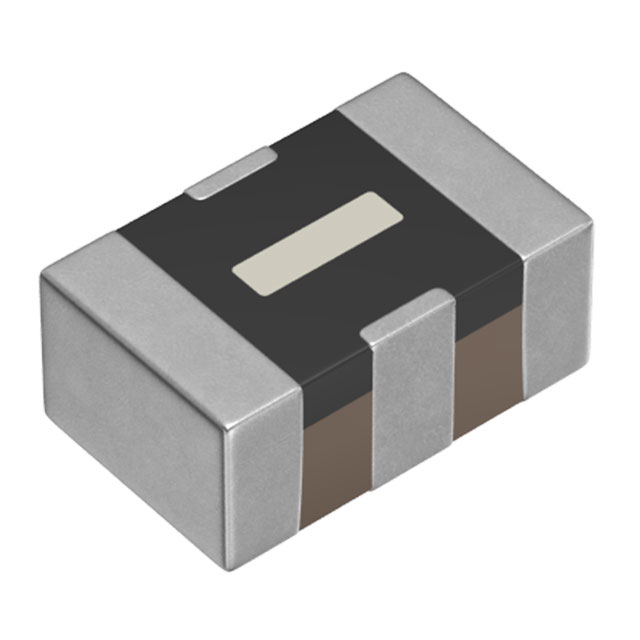

The MEM2012S101RT is a multilayer chip EMC filter designed for signal line noise suppression. It operates as a low-pass LC filter with a cutoff frequency of 100 MHz. The component utilizes a compact surface-mount package suitable for high-density circuit board layouts. It provides effective electromagnetic interference reduction in digital and consumer electronic applications.

Feature Summary

• Multilayer chip construction for high reliability
• Low-pass LC filter topology for signal conditioning
• Compact surface-mount design for space-constrained applications

Applications

• Signal line noise reduction in digital electronics
• Electromagnetic compatibility filtering in consumer devices
• High-frequency signal integrity protection

Procurement Notes

Verify the specific suffix (e.g., RT vs RT001) against official TDK documentation to confirm terminal configuration and packaging details. Ensure RoHS compliance status matches project requirements. Cross-reference datasheet revision dates to validate electrical characteristics before integration into final designs.

Selection Notes

Select this component when a compact, low-pass LC filter is required for signal lines operating below or near 100 MHz. Consider the 0504 package dimensions for PCB layout constraints. Evaluate insertion loss and impedance matching requirements against system specifications to ensure adequate noise attenuation without signal degradation.

Part Context

This part belongs to TDK's series of multilayer ceramic EMC filters. These components are engineered to suppress electromagnetic interference in high-speed digital circuits. The S101 designation typically indicates the specific cutoff frequency characteristic within the product family.

Replacement Considerations

Check for MEM2012S101RT001 as a potential variant with different terminal configurations. Verify pinout compatibility and electrical performance equivalence before substituting with other manufacturers' 100 MHz low-pass filters.
