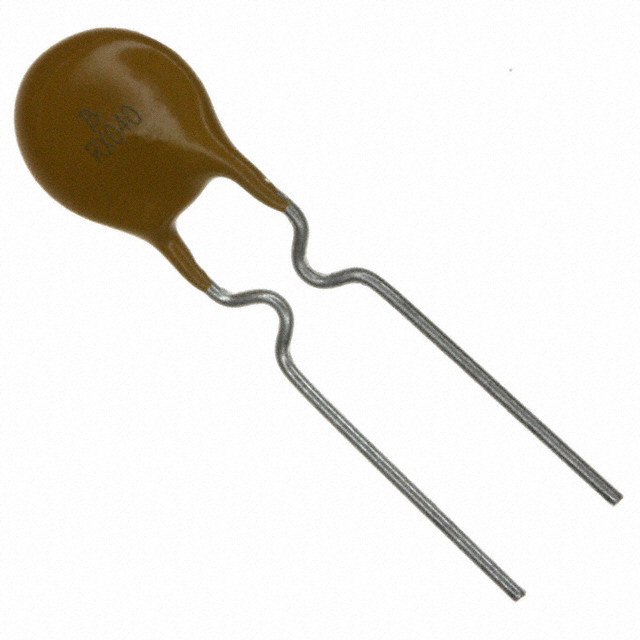

MF-RX075/72-AP

$0.26

Description：PTC RESET FUSE 72V 750MA RADIAL
Series：MF-RX/72
Mfr：Bourns Inc.
Package：Tape & Box (TB)

SKU:fedf444bce8d Category: PTC Resettable Fuses Brand: Bourns Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：PTC RESET FUSE 72V 750MA RADIAL
Series：MF-RX/72
Mfr：Bourns Inc.
Package：Tape & Box (TB)
Type：-
Voltage - Max：72V
Current - Hold (Ih) (Max)：750 mA
Current - Trip (It)：1.5 A
Current - Max：40 A
Time to Trip：6.3 s
Resistance - Initial (Ri) (Min)：-
Resistance - Post Trip (R1) (Max)：-
Operating Temperature：-
Grade：-
Qualification：-
Ratings：-
Mounting Type：Through Hole
Package / Case：Radial, Disc
Size / Dimension：0.409" Dia x 0.122" W (10.40mm x 3.10mm)
Height - Seated (Max)：0.630" (16.00mm)
Thickness (Max)：-
Lead Spacing：0.201" (5.10mm)

Download product information

MF-RX075/72-AP

Overview

The Bourns MF-RX075/72-AP is a radial leaded PTC resettable fuse from the Multifuse MF-RX/72 series. It features a hold current of 750 mA and a trip current of 1.5 A, with a maximum voltage rating of 72 VDC. The device has a typical resistance of 0.3 Ohms and a power dissipation of 450 mW. It operates within a temperature range of -40°C to +85°C and utilizes a 5.1 mm lead spacing.

Feature Summary

Provides overcurrent protection through polymer positive temperature coefficient technology
Offers automatic circuit restoration after fault conditions clear
Designed for robust performance in high voltage and high temperature environments

Applications

Overcurrent and surge protection for consumer electronics
Circuit protection for automotive electronic systems
Protection for industrial communication equipment
Safety system component integration

Procurement Notes

Verify the specific suffix AP against official Bourns documentation to confirm packaging details. Ensure the selected variant matches the required lead configuration and thermal characteristics for the target PCB layout. Cross-reference the datasheet for any recent engineering change notices that may affect physical dimensions or material compliance status before finalizing procurement orders.

Selection Notes

Select this component when a 72 VDC maximum voltage rating and a 750 mA hold current are required for radial mounting applications. Consider the 0.3 Ohm resistance value for potential voltage drop impacts in low voltage circuits. Evaluate the 450 mW power dissipation capability against expected ambient temperatures to ensure reliable operation without premature tripping during normal load cycles.

Part Context

This part belongs to the Multifuse MF-RX/72 series, which utilizes a 125°C polymer PTC element. The series is engineered to provide cost-effective protection in harsh environments while eliminating temperature-induced nuisance tripping. It serves as a reusable alternative to traditional single-use fuses in space-constrained designs.
