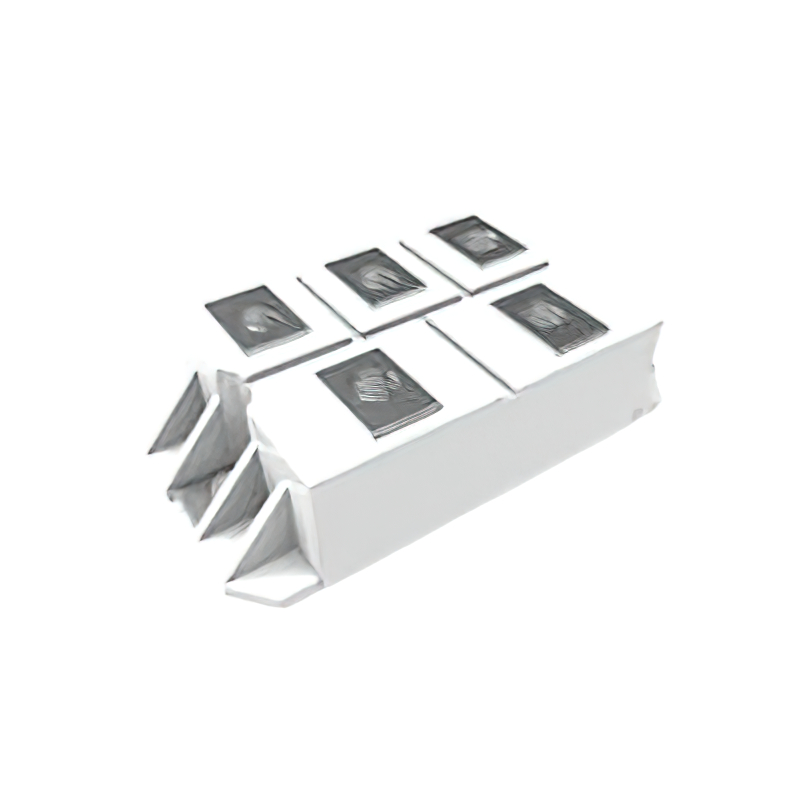

MF100H07M4-BP

Overview

The MF100H07M4-BP is a silicon-based Fast Recovery Epitaxial Diode (FRED) module manufactured by Micro Commercial Components. It features a screw mount installation style and operates within a temperature range of -40°C to +150°C. The component has a forward voltage of 1.2 V and a gate-source threshold voltage of 700 V. Packaged in bulk, it belongs to the FRED Modules product line under discrete semiconductor modules.

Feature Summary

• Utilizes silicon technology for fast recovery epitaxial diode applications
• Designed for screw mount installation on printed circuit boards or heatsinks
• Operates reliably across an extended industrial temperature range

Applications

• High-frequency power conversion circuits
• Industrial motor drive systems
• Uninterruptible power supply (UPS) units

Procurement Notes

Verify the specific datasheet version before integration, as specifications may vary between revisions. Confirm that the screw mount interface matches your mechanical design requirements. Ensure thermal management solutions support the maximum operating temperature of +150°C. Check current availability status, as supply constraints have been reported recently. Validate compliance with relevant environmental regulations such as RoHS if required by your manufacturing standards.

Selection Notes

Select this module when high-speed switching and robust thermal performance are required in power electronics. The screw mount option provides secure mechanical fixation for high-vibration environments. Consider the 1.2 V forward voltage drop for efficiency calculations in low-voltage, high-current applications. Ensure the 700 V gate-source threshold aligns with your control circuit drive capabilities. Evaluate the bulk packaging for compatibility with your assembly line handling processes.

Part Context

This component falls under the discrete semiconductor modules category, specifically within the FRED Modules sub-class. It represents a specialized power device designed for demanding electrical environments. The product is identified by the manufacturer's part number MF100H07M4-BP and is distinct from standard diodes or bridge rectifiers due to its encapsulated module form factor and fast recovery characteristics.

Replacement Considerations

No publicly confirmed substitute part numbers are available for this specific model. Engineers should consult the manufacturer directly for potential cross-references or updated component recommendations. Verify electrical parameters carefully if considering alternative brands, as package dimensions and mounting styles may differ significantly.
