Product Detailed Parameters
- Description：DIODE MODULE GEN PURP 200A F2
- Series：-
- Mfr：MCC (Micro Commercial Components)
- Package：Bulk
- Diode Configuration：1 Pair Series Connection
- Technology：Standard
- Voltage - DC Reverse (Vr) (Max)：-
- Current - Average Rectified (Io) (per Diode)：200A
- Voltage - Forward (Vf) (Max) @ If：2.8 V @ 200 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：110 ns
- Current - Reverse Leakage @ Vr：1 mA @ 1200 V
- Operating Temperature - Junction：-40°C ~ 150°C
- Mounting Type：Chassis Mount
- Package / Case：F2 Module
- Supplier Device Package：F2
- Grade：-
- Qualification：-
Download product information
Overview

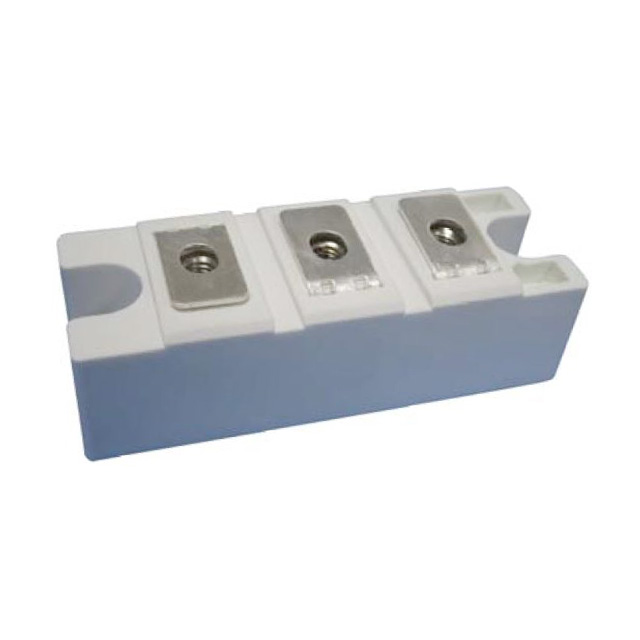

The MF200C12F2-BP is a silicon Fast Recovery Epitaxial Diode (FRED) module manufactured by Micro Commercial Components. It features a dual series configuration within an F2 package, rated for 1200V reverse voltage and 200A average forward current per diode at 110°C case temperature. The device exhibits a maximum forward voltage of 2.5V at 200A and supports surge currents up to 1950A. Thermal resistance from junction to case is 0.22°C/W per diode, with a total power dissipation of 920W. Operating temperatures range from -40°C to +150°C.
Feature Summary
- Soft reverse recovery characteristics designed to minimize switching noise and electromagnetic interference.
- Ultrafast reverse recovery time combined with low reverse recovery loss for high-efficiency operation.
- Low inductance package construction to reduce parasitic effects during high-speed switching.
- High surge current capability to withstand transient overloads without failure.
Applications
- Inverter circuits
- Uninterruptible Power Supply (UPS)
- Plating power supplies
- Ultrasonic cleaner and welder systems
- Power Factor Correction (PFC) circuits
Procurement Notes
Verify authenticity through authorized MCC distributors or direct procurement channels to avoid counterfeit components. Confirm the BP suffix indicates RoHS compliance and lead-free finish. Ensure storage conditions adhere to specified limits to maintain product integrity prior to assembly.
Selection Notes
Select this module for applications requiring high current handling and fast switching speeds. Verify thermal management capabilities match the 0.22°C/W junction-to-case resistance. Ensure the mounting torque meets the recommended 4.5 N·m specification for reliable mechanical and electrical contact.
Part Context
This component belongs to the MF200C12F2 series of FRED modules. It utilizes silicon technology and is housed in the F2 screw-mount package. The series is designed for industrial power conversion applications requiring robust performance under high thermal stress.
Replacement Considerations
Consult official MCC documentation for verified substitute part numbers. Cross-referencing requires matching electrical ratings, package dimensions, and thermal characteristics to ensure functional compatibility.
FAQ
What is the maximum repetitive peak reverse voltage?
The maximum repetitive peak reverse voltage (VRRM) is 1200V.
How many diodes are contained in the module?
The module contains two diodes connected in series.
What is the recommended mounting torque for the M6 screws?
The recommended mounting torque is 4.5 N·m.
