MF300K04F3-BP

Overview

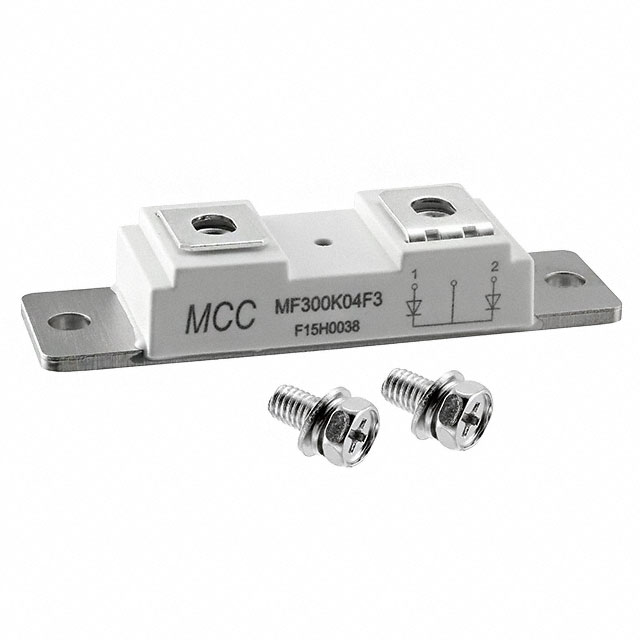

The MF300K04F3-BP is a silicon Fast Recovery Epitaxial Diode (FRED) module manufactured by Micro Commercial Components. It features a single configuration with screw mount installation and an F3 package. The device supports a maximum repetitive reverse voltage of 400 V and a maximum average forward current of 300 A at a case temperature of 125°C. Key electrical parameters include a typical forward voltage of 1.05 V at 150 A, a peak reverse recovery time of 90 ns at 25°C, and a surge current capability of up to 3000 A for half-cycle sine waves. The module operates within a junction temperature range of -40°C to +150°C.

Feature Summary

• Soft reverse recovery characteristics designed to minimize switching losses
• Ultrafast reverse recovery time combined with low reverse recovery loss
• Low inductance package construction for high-frequency performance
• High surge current capability suitable for demanding power applications

Applications

• Inversion Welder
• Uninterruptible Power Supply (UPS)
• Plating Power Supply
• Ultrasonic Cleaner and Welder
• Power Factor Correction (PFC) Circuit

Procurement Notes

Verify authenticity by purchasing directly from Micro Commercial Components or authorized distributors to avoid counterfeit parts. Confirm the suffix 'BP' indicates RoHS compliance and lead-free finish. Ensure thermal management meets the specified case temperature requirements for rated current operation.

Selection Notes

Select this module for high-current applications requiring fast switching speeds and low reverse recovery charge. Verify that the system can maintain the case temperature at or below 125°C to achieve the rated 300 A average forward current. Consider the 400 V rating against peak circuit voltages including transients.

Part Context

This component belongs to the MF300K04F3 series of FRED modules from Micro Commercial Components. It utilizes silicon technology and is housed in a robust module package designed for screw mounting. The series is engineered for industrial power electronics where efficiency and reliability are critical.

Replacement Considerations

Consult official datasheets for cross-referencing. No specific substitute part numbers are confirmed in the provided documentation.

FAQ

What is the recommended torque for the M6 mounting screws?

The recommended torque for the M6 mounting screws is between 3 and 4.7 N·m.

How does the reverse recovery time vary with junction temperature?

At 25°C, the typical reverse recovery time is 90 ns, while at 125°C it increases to 200 ns under the same test conditions.

What is the maximum surge current capability for a 60Hz sine wave?

For a half-cycle 60Hz sine wave, the maximum surge current (IFSM) is 3000 A.
