MFBA2V1608-300-R

Chip Ferrite Bead Overview

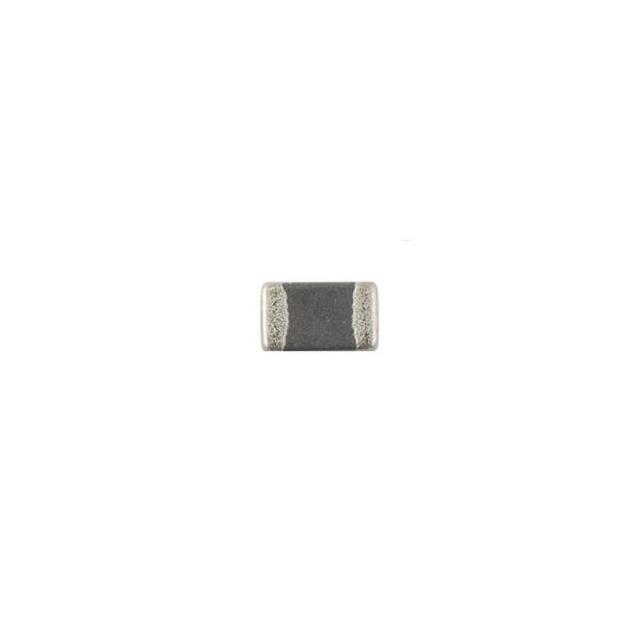

The MFBA2V1608-300-R is a surface-mount ferrite bead manufactured by Eaton Electronics. It features a 0603 (1608 metric) package with dimensions of 1.6 mm length, 0.8 mm width, and 0.8 mm height. The component provides an impedance of 30 Ohms at a test frequency of 100 MHz and supports a maximum current rating of 3 Amperes. It has a maximum DC resistance of 40 mOhms. The device operates within a temperature range of -55°C to +150°C and holds AEC-Q200 qualification.

Chip Ferrite Bead Feature Summary

• AEC-Q200 qualified for automotive reliability standards
• High current handling capability up to 3 Amperes
• Wide operating temperature range from -55°C to +150°C

Chip Ferrite Bead Applications

• Automotive electronic circuit filtering
• Power line noise suppression in high-current applications
• EMI suppression in compact SMD designs

Chip Ferrite Bead Procurement Notes

Verify the specific suffix and packaging configuration against official Eaton documentation before ordering. Confirm that the required quantity aligns with standard reel sizes or cut tape availability. Ensure the procurement channel sources genuine components directly from authorized distributors to guarantee authenticity and traceability. Check for any recent updates to the RoHS compliance status or datasheet revisions.

Chip Ferrite Bead Selection Notes

Select this component when designing circuits requiring robust EMI suppression in space-constrained 0603 footprints. It is suitable for applications demanding high current tolerance alongside significant impedance at 100 MHz. Consider the wide temperature range for harsh environments. Verify that the 40 mOhm DC resistance meets the power loss constraints of the specific power rail design.

Chip Ferrite Bead Part Context

This part belongs to Eaton's MFBA series of ferrite beads, designed for surface-mount technology. The series offers various impedance and current ratings across different package sizes. The 0603 form factor allows for dense PCB layouts while maintaining effective noise filtration capabilities for digital and power lines in modern electronics.

Chip Ferrite Bead Replacement Considerations

Cross-reference with other Eaton MFBA series parts sharing the 0603 footprint and similar electrical characteristics. Verify compatibility with alternative manufacturers' ferrite beads only if they match the 30 Ohm impedance, 3A rating, and physical dimensions exactly.
