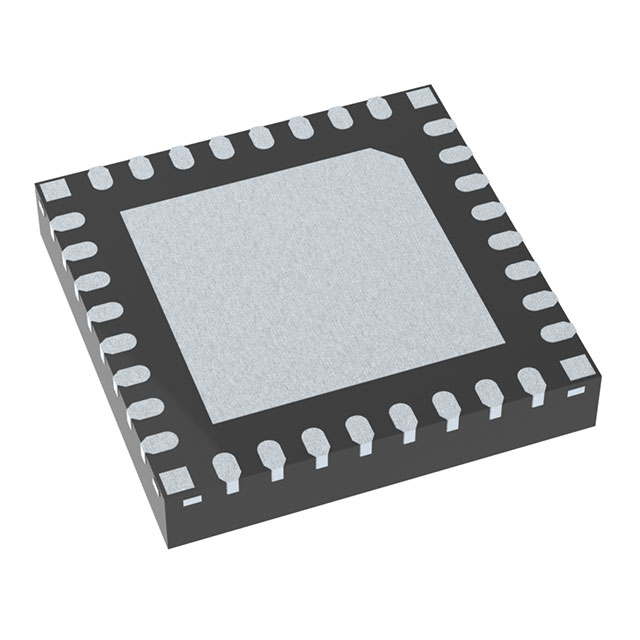

MFS5600AVMA0EP

Power Management - Specialized Overview

The MFS5600AVMA0EP is an automotive-grade System Basis Chip (SBC) from NXP Semiconductors, designed for high-reliability power management. It integrates a battery-connected DC-DC buck controller with external FETs and a buck regulator with internal FETs. The device supports input voltages from 2.7 V to 36 V and provides adjustable output voltages between 1.8 V and 8 V. It features dual independent DC/DC buck converters, including a high-voltage buck controller capable of up to 15 A load current and a 3 A HV buck regulator with internal FETs achieving 93% efficiency at 3 A. Operating temperatures range from -40 °C to +125 °C.

Power Management - Specialized Feature Summary

• Integrates functional safety features compliant with ASIL B standards, including independent voltage monitors, windowed watchdog timer, and built-in self-test capabilities.
• Offers highly configurable General Purpose Input/Outputs (GPIOs) for seamless operation with PF PMIC families such as PF8x, PF7x, and PF5x.
• Provides optimized automotive architecture with low-power modes and EMC minimizing features like spread spectrum, frequency tuning, and synchronization.
• Supports programmability of supplies, sequencing, and specific functions via One Time Programmable (OTP) memory.

Power Management - Specialized Applications

• Automotive infotainment systems
• Instrument clusters and driver awareness displays
• Telematics and V2X communication modules
• Radar, vision, and ADAS sensor fusion units

Power Management - Specialized Procurement Notes

Verify the exact suffix configuration against the official NXP datasheet to ensure correct safety grade and OTP programming status. Confirm package type and temperature range specifications match the target application requirements before procurement. Cross-reference ordering information in the latest documentation to avoid discrepancies in variant selection.

Power Management - Specialized Selection Notes

Select this component for applications requiring ASIL B functional safety compliance and integrated power management. Ensure compatibility with external FETs for the high-current buck controller if loads exceed internal regulator limits. Verify GPIO configurability needs against available OTP options for seamless integration with associated application processors.

Power Management - Specialized Part Context

This part belongs to the FS56 Series of System Basis Chips designed specifically for automotive environments. It complements NXP's portfolio of professional power management ICs by providing robust system-level power control and monitoring. The series supports various safety grades and is engineered to meet the stringent reliability demands of modern vehicle electronics.

Power Management - Specialized Replacement Considerations

Consult official substitution guides for compatible variants within the FS56 family. Verify that alternative parts maintain identical safety grades, pinout configurations, and electrical characteristics to ensure system integrity without redesign.
