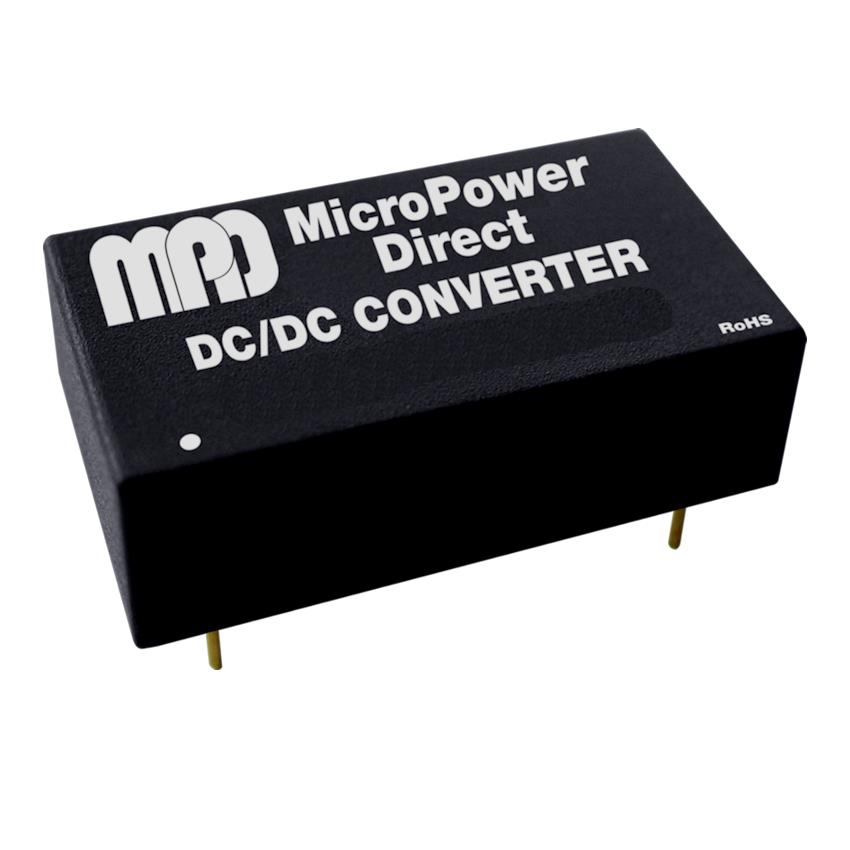

MG112S-07I5

MG112S-07I5 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists MicroPower Direct. Its product description is DC/DC,1W,12VIN,7.2VOUT,5.2 KVISO. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for MG112S-07I5

• Description：DC/DC,1W,12VIN,7.2VOUT,5.2 KVISO
• Series：MG100 (1W)
• Mfr：MicroPower Direct
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：10.8V
• Voltage - Input (Max)：13.2V
• Voltage - Output 1：7.2V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：139mA
• Power (Watts)：1 W
• Voltage - Isolation：5.2 kV
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：76%
• Mounting Type：Through Hole
• Package / Case：14-DIP Module, 5 Leads
• Size / Dimension：0.80" L x 0.40" W x 0.27" H (20.3mm x 10.2mm x 6.9mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CE, cURus, UKCA
• Standard Number：62368-1
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for MG112S-07I5
