MG12300WB-BN2MM

Overview

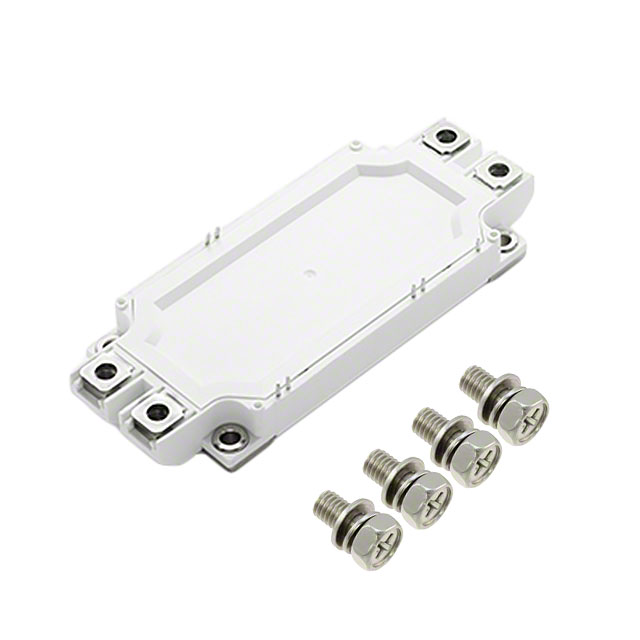

The MG12300WB-BN2MM is a half-bridge IGBT module manufactured by Littelfuse Inc. It utilizes Trench Field Stop technology to achieve low saturation voltage and fast switching characteristics with short tail current. The device features a maximum collector-emitter breakdown voltage of 1200 V and a continuous collector current rating of 500 A. It is designed for chassis mounting and includes an integrated NTC thermistor for thermal monitoring. The module supports a maximum power dissipation of 1400 W and operates within standard industrial temperature ranges, ensuring reliable performance in high-power applications.

Feature Summary

• Utilizes IGBT3 Trench+Field Stop technology for enhanced efficiency
• Features low saturation voltage with positive temperature coefficient
• Designed for fast switching with short tail current reduction
• Includes integrated NTC thermistor for precise thermal management

Applications

• Industrial motor drives
• Uninterruptible power supplies (UPS)
• High-frequency induction heating systems

Procurement Notes

Verify the specific ordering suffix and package configuration against the official Littelfuse datasheet to ensure compatibility with your thermal and mechanical design requirements. Confirm that the component status is acceptable for your production timeline, as availability may vary. Cross-reference the pinout and mounting specifications with your system layout to prevent integration errors during assembly.

Selection Notes

Select this module when high current handling and efficient switching are required in a compact half-bridge configuration. The Trench Field Stop technology offers advantages in reducing conduction losses compared to standard IGBTs. Ensure your cooling solution can handle the 1400 W power dissipation and that the control circuitry aligns with the gate threshold specifications for optimal performance.

Part Context

This component belongs to the Littelfuse IGBT module family, specifically designed for power electronics applications requiring robust performance. The MG12300WB-BN2MM represents a half-bridge topology, which is commonly used in inverters and converters. Its construction supports high-density power designs while maintaining thermal stability through effective heat dissipation paths and integrated sensing capabilities.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with alternative modules by comparing electrical ratings, pin configurations, and thermal characteristics directly with the manufacturer's cross-reference data.
