MGAH1004330M-10

Fixed Inductors Overview

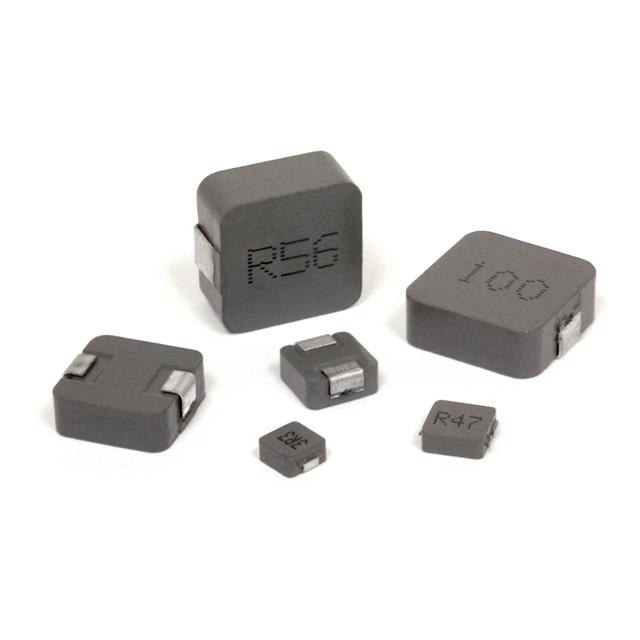

The MGAH1004330M-10 is a shielded molded power inductor from Laird-Signal Integrity Products. It features an inductance of 33 µH with a tolerance of ±20%. The component supports a maximum DC current of 4 A and has a maximum DC resistance (DCR) of 92 mΩ. It operates within a temperature range of -55°C to +155°C. The physical dimensions are 11 mm in length, 10 mm in width, and 3.8 mm in height. The core material is metal composite, and it utilizes surface mount termination for PCB integration.

Fixed Inductors Feature Summary

• Shielded construction minimizes electromagnetic interference coupling
• Metal composite core material provides stable magnetic performance
• High thermal stability suitable for demanding operating environments

Fixed Inductors Applications

• Power supply filtering circuits
• DC-DC converter energy storage
• Signal line noise suppression

Fixed Inductors Procurement Notes

Verify the manufacturer part number MGAH1004330M-10 against official Laird datasheets to confirm specifications. Ensure compatibility with surface mount assembly processes. Check for RoHS compliance status as required by project regulations. Confirm availability through authorized distributors or direct manufacturer channels.

Fixed Inductors Selection Notes

Select this component for applications requiring high power density and thermal resilience. The 1004 package size offers a balance between current handling capability and board space constraints. Consider the 92 mΩ DCR for efficiency calculations in low-voltage power paths. Validate saturation characteristics against peak load currents in the target circuit design.

Fixed Inductors Part Context

This component belongs to the MGAH1004 series of high-power shielded inductors. The series utilizes metal composite technology for enhanced performance. Similar parts in the family include variants with different inductance values such as MGAH1004150M-10 and MGAH10044R7M-10. These components share common packaging and mounting characteristics.

Fixed Inductors Replacement Considerations

Cross-reference with other Laird MGAH1004 series parts for equivalent electrical parameters. Verify pinout and mechanical footprint compatibility before substitution. Consult official replacement guides for discontinued or alternative components.
