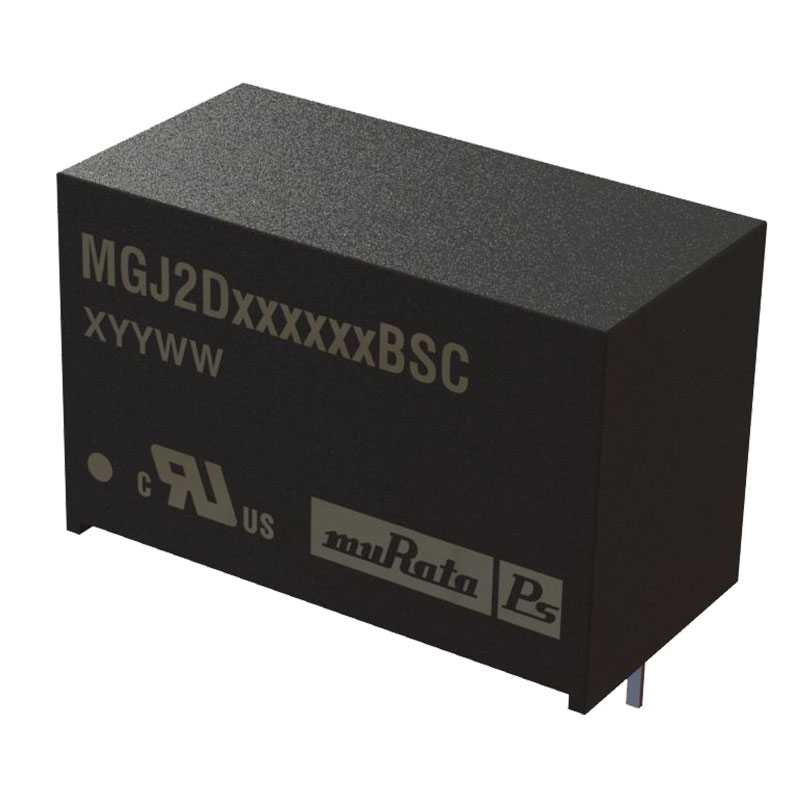

MGJ2D121802BSC

MGJ2D121802BSC is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Murata Power Solutions Inc.. Its product description is DC/DC 2W TH 12-18/2V 5.4KV SIP. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for MGJ2D121802BSC

• Description：DC/DC 2W TH 12-18/2V 5.4KV SIP
• Series：MGJ2B (2W)
• Mfr：Murata Power Solutions Inc.
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：10.8V
• Voltage - Input (Max)：13.2V
• Voltage - Output 1：18V
• Voltage - Output 2：-2.5V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：80mA, 80mA
• Power (Watts)：1.64 W
• Voltage - Isolation：5.4 kV
• Applications：ITE (Commercial), Medical
• Features：-
• Operating Temperature：-40°C ~ 105°C
• Efficiency：80%
• Mounting Type：Through Hole
• Package / Case：7-SIP Module, 5 Leads
• Size / Dimension：0.77" L x 0.39" W x 0.49" H (19.5mm x 9.8mm x 12.5mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：cURus
• Standard Number：60601-1; 62368-1
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for MGJ2D121802BSC
