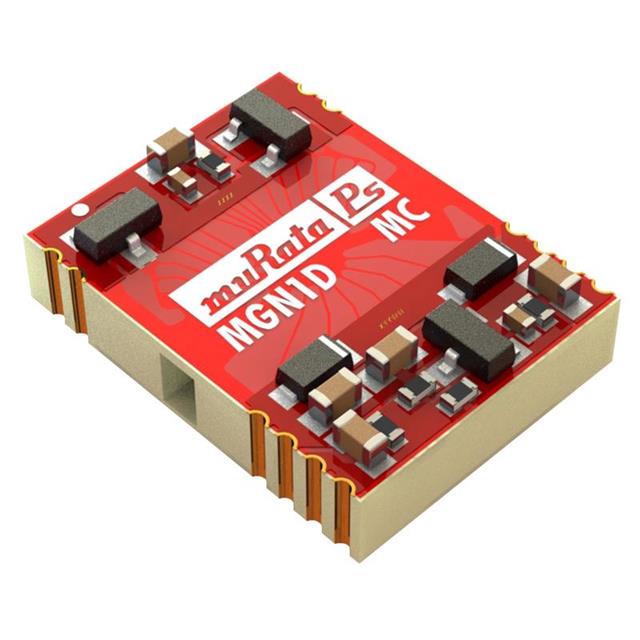

MGN1D050603MC-R7

MGN1D050603MC-R7 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Murata Power Solutions Inc.. Its product description is DC-DC 1W SM 5-6/-3V GAN. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for MGN1D050603MC-R7

• Description：DC-DC 1W SM 5-6/-3V GAN
• Series：MGN1
• Mfr：Murata Power Solutions Inc.
• Package：Tape & Reel (TR),Cut Tape (CT)
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：4.5V
• Voltage - Input (Max)：5.5V
• Voltage - Output 1：6V
• Voltage - Output 2：-3V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：111mA, 111mA
• Power (Watts)：999 mW
• Voltage - Isolation：3 kV
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 105°C (With Derating)
• Efficiency：62%
• Mounting Type：Surface Mount
• Package / Case：24-SMD Module, 12 Leads
• Size / Dimension：0.63" L x 0.47" W x 0.17" H (16.0mm x 12.0mm x 4.3mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for MGN1D050603MC-R7
