MH24FAD-R 11.5200000

Overview

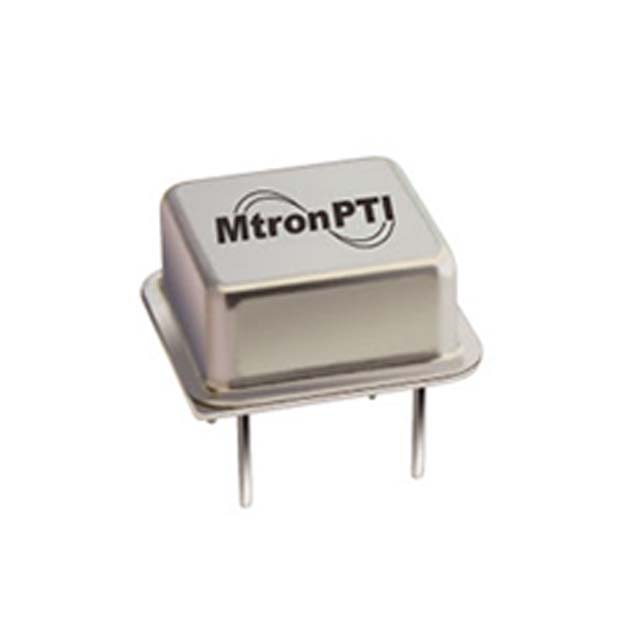

The MH24FAD-R is an HCMOS/TTL compatible clock oscillator manufactured by MtronPTI. It utilizes a standard 8-pin DIP package and supports both 3.3V and 5.0V supply voltages. The device offers a tri-state option for output control and features low jitter performance. It is available in a RoHS compliant version, indicated by the suffix -R, and provides wide operating temperature range options suitable for various industrial applications.

Feature Summary

• Supports 3.3V or 5.0V operation
• Tri-state output option
• Low jitter performance
• RoHS compliant construction

Applications

• Microprocessors and controllers
• Industrial controllers
• Test and measurement equipment

Procurement Notes

Verify the specific frequency tolerance and stability requirements against the official MtronPTI datasheet for the MH24FAD-R series. Confirm that the 8-pin DIP package and voltage compatibility align with the target circuit design. Ensure the RoHS compliance status matches environmental regulations for the intended deployment region.

Selection Notes

Select this component when a through-hole mounting solution is required for HCMOS or TTL logic interfaces. Consider the availability of the tri-state function if bus sharing or power management is necessary. Evaluate the thermal environment to ensure the selected temperature grade meets the operational constraints of the system.

Part Context

This part belongs to the M3H & MH Series of clock oscillators from MtronPTI. These components are designed as general-purpose timing sources for digital systems requiring reliable clock signals with minimal jitter. The series emphasizes compatibility with standard logic families and flexible power supply options.

Replacement Considerations

Check for direct substitutes within the M3H & MH series offering identical pinouts and electrical characteristics. Verify that any alternative maintains the same voltage support and package type to ensure mechanical fit without PCB redesign.
