MH4532-151Y

Overview

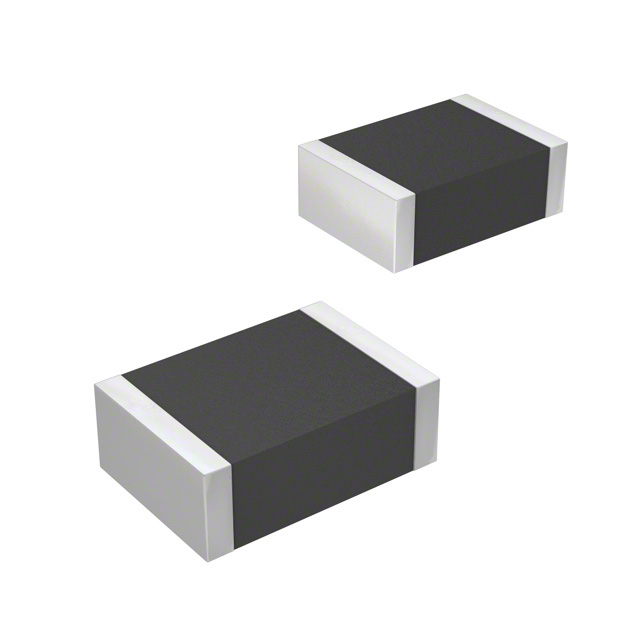

The MH4532-151Y is a high current chip ferrite bead manufactured by Bourns Inc. in an 1812 (4.50mm x 3.20mm) surface mount package. It exhibits an impedance of 150 Ohms at a test frequency of 100 MHz with a tolerance of 25%. The component supports a maximum DC current of 5A and has a maximum DC resistance of 40 mOhms. It operates within a temperature range of -55°C to +125°C.

Feature Summary

• Designed for high current applications requiring effective electromagnetic interference suppression
• Utilizes a compact surface mount footprint suitable for dense PCB layouts
• Constructed to maintain performance across a wide industrial temperature range

Applications

• Power supply output filtering
• DC-DC converter noise suppression
• High-speed data line protection

Procurement Notes

Verify the specific impedance value and current rating against the official Bourns datasheet before integration. Confirm that the 1812 package dimensions align with the target PCB land pattern. Ensure the operating environment remains within the specified -55°C to +125°C range to guarantee reliable performance and prevent thermal degradation of the ferrite material.

Selection Notes

Select this component when circuit requirements demand significant current handling capability alongside EMI reduction. The 5A rating distinguishes it from lower-current alternatives in the same series. Consider the 150 Ohm impedance profile for targeted frequency attenuation. Evaluate the physical size constraints to ensure the 1812 package fits the available board space without compromising thermal management or mechanical stability.

Part Context

This part belongs to the MH4532 series of high current chip ferrite beads from Bourns. The series offers various impedance values within the same 1812 package form factor, allowing designers to customize noise suppression characteristics while maintaining consistent mechanical mounting standards across different power stages in electronic assemblies.

Replacement Considerations

Equivalent parts include other 150 Ohm ferrite beads in the 1812 package with comparable current ratings. Verify impedance curves and DC resistance specifications match the original design requirements to ensure identical filtering performance.
