MHA0530NSG1R5M

Fixed Inductors Overview

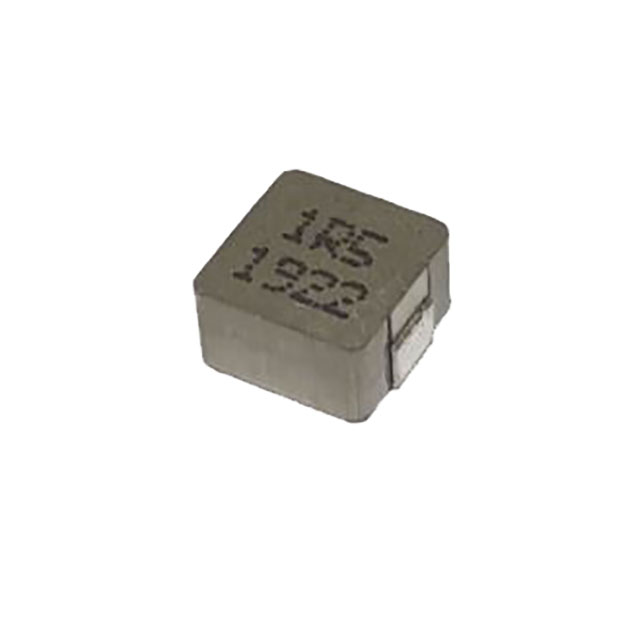

The MHA0530NSG1R5M is a surface-mount fixed inductor manufactured by Mentech Technology USA Inc. It features an inductance of 1.5 µH and supports a maximum current rating of 6 A. The component exhibits a low DC resistance of 22 mΩ, ensuring efficient power delivery with minimal loss. Designed for compact electronic assemblies, it utilizes a shielded structure to mitigate electromagnetic interference. The device is packaged in a small form factor suitable for automated pick-and-place manufacturing processes.

Fixed Inductors Feature Summary

• Shielded magnetic structure for reduced electromagnetic interference
• High current handling capability of 6 A
• Low DC resistance for improved efficiency
• Surface-mount design for automated assembly

Fixed Inductors Applications

• DC-DC converter output filtering
• Power supply input stages
• Portable electronic device power management

Fixed Inductors Procurement Notes

Verify the manufacturer designation as Mentech Technology USA Inc. when sourcing this component. Confirm the specific package dimensions and terminal configuration against the official datasheet to ensure compatibility with your PCB footprint. Check for RoHS compliance status if required by your regulatory standards. Ensure the supplier provides traceability documentation for quality assurance purposes.

Fixed Inductors Selection Notes

Select this inductor when a compact solution with high current capacity is required. The 1.5 µH value suits applications needing moderate energy storage with low ripple. Consider the 22 mΩ resistance for thermal management in dense layouts. Evaluate the physical size constraints against available board space. Compare performance metrics with alternative shielded inductors from other manufacturers if supply chain diversity is needed.

Fixed Inductors Part Context

This component belongs to the series of surface-mount power inductors produced by Mentech Technology USA Inc. The company specializes in R&D and manufacturing of magnetic components, including transformers and inductors. The MHA series is designed for modern electronics requiring reliable passive components in space-constrained environments.
