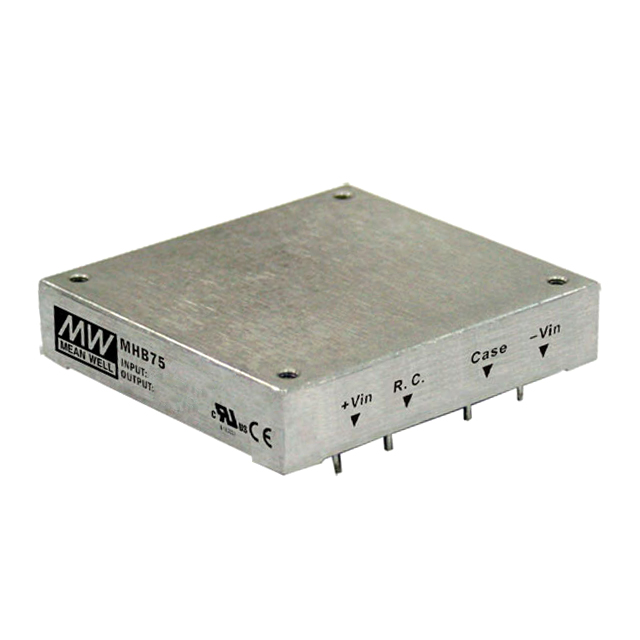

MHB75-12S12

MHB75-12S12 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists MEAN WELL USA Inc.. Its product description is DC DC CONVERTER 12V 75W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for MHB75-12S12

• Description：DC DC CONVERTER 12V 75W
• Series：MHB75 (75W)
• Mfr：MEAN WELL USA Inc.
• Package：Box
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：9V
• Voltage - Input (Max)：18V
• Voltage - Output 1：12V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：6.25A
• Power (Watts)：75 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, OTP, OVP, SCP, UVLO
• Operating Temperature：-40°C ~ 100°C (With Derating)
• Efficiency：87%
• Mounting Type：Through Hole
• Package / Case：Half Brick
• Size / Dimension：2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
• Supplier Device Package：Half Brick
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for MHB75-12S12
