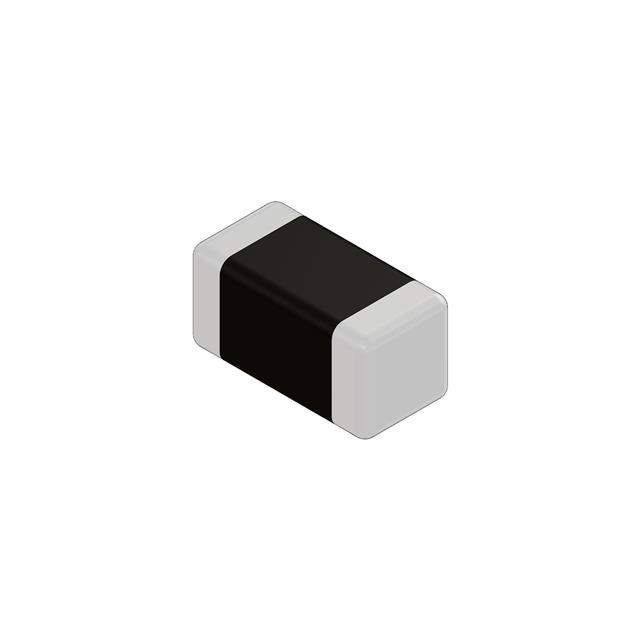

MHC1608S221NBPDG

$0.09

Description：FERRITE BEAD 220 OHM 0603 1LN
Series：MHC-S
Mfr：INPAQ Technology Co., Ltd
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:bbeced940939 Category: Ferrite Beads and Chips Brand: INPAQ Technology Co., Ltd

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FERRITE BEAD 220 OHM 0603 1LN
Series：MHC-S
Mfr：INPAQ Technology Co., Ltd
Package：Tape & Reel (TR),Cut Tape (CT)
Filter Type：Power, Signal Line
Number of Lines：1
Impedance @ Frequency：220 Ohms @ 100 MHz
Current Rating (Max)：2A
DC Resistance (DCR) (Max)：90mOhm
Ratings：-
Operating Temperature：-55°C ~ 125°C
Package / Case：0603 (1608 Metric)
Mounting Type：Surface Mount
Height (Max)：0.037" (0.95mm)
Size / Dimension：0.063" L x 0.031" W (1.60mm x 0.80mm)
Features：-

Download product information

MHC1608S221NBPDG

Overview

The MHC1608S221NBPDG is a surface-mount ferrite bead manufactured by INPAQ Technology Co., Ltd. It features a 0603 (1608 Metric) package size and provides an impedance of 220 Ohms at 100 MHz. The component supports a maximum current rating of 2A with a typical DC resistance of 90mOhm. Designed for power and signal line applications, it effectively suppresses electromagnetic interference in compact electronic circuits.

Feature Summary

Monolithic multilayer construction ensures high reliability and closed magnetic flux to minimize external magnetic field interference.

Applications

Power line filtering
Signal line noise suppression

Procurement Notes

Verify the complete part number including suffixes against official manufacturer documentation to ensure correct impedance and tolerance specifications. Confirm RoHS compliance status through valid certificates provided by INPAQ Technology. Cross-reference datasheet parameters such as DC resistance and current ratings with design requirements before procurement.

Selection Notes

Select this component based on required impedance at specific frequencies and current handling capabilities. Ensure the 0603 package footprint matches the PCB layout constraints. Verify that the DC resistance meets voltage drop limitations in the target circuit application.

Part Context

This ferrite bead belongs to INPAQ's series of EMI/EMC passive components designed for noise suppression. The company specializes in manufacturing multilayer metal alloy inductors and ferrite beads for consumer electronics and industrial applications requiring reliable signal integrity.

Replacement Considerations

Publicly confirmed substitute part numbers include MPZ1608S221ATA00 from TDK Corporation. Verify electrical compatibility and physical dimensions before substitution.
