MHC2012S800UBPDG

Overview

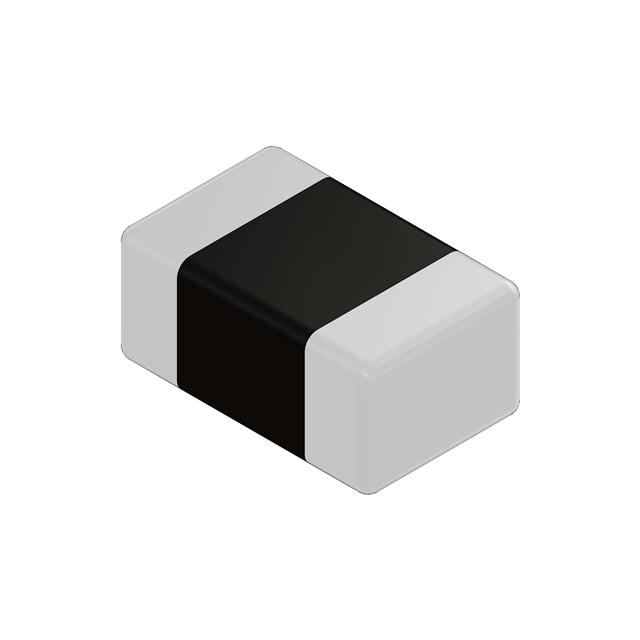

The MHC2012S800UBPDG is a high-speed chip common mode filter manufactured by INPAQ Technology. It features an impedance of 80 Ohms at 100 MHz and supports a maximum current rating of 5A. The component has a maximum DC resistance (DCR) of 20mOhm and operates within a temperature range of -55°C to 125°C. Designed for EMI suppression, it utilizes a compact surface-mount package suitable for dense circuit board layouts.

Feature Summary

• Provides effective common mode noise suppression in high-speed data lines
• Supports high current loads up to 5A with low insertion loss
• Engineered for stable performance across wide industrial temperature ranges

Applications

• High-speed data exchange interfaces
• Bluetooth module signal lines
• Portable computing devices

Procurement Notes

Verify the complete part number including suffixes such as PDG against official INPAQ Technology documentation to ensure correct packaging and specifications. Confirm impedance values and current ratings match system requirements before procurement. Cross-reference datasheets from authorized distributors to validate authenticity and technical parameters.

Selection Notes

Select this component when designing circuits requiring robust EMI filtering for high-speed signals carrying significant current. Ensure the operating environment stays within the specified -55°C to 125°C range. Verify that the 80 Ohm impedance at 100 MHz aligns with the target frequency spectrum for noise attenuation in the specific application design.

Part Context

This component belongs to INPAQ's portfolio of circuit protection and EMI/EMC solutions. The manufacturer specializes in components for computing, communication, consumer electronics, and automotive sectors. The MHC series represents their high-speed chip common mode filters designed for modern electronic systems.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Consult INPAQ Technology directly for qualified alternatives or cross-reference options based on identical electrical parameters and package dimensions.

FAQ

What is the maximum current rating for the MHC2012S800UBPDG?

The maximum current rating is 5A.

What is the impedance value at 100 MHz?

The impedance is 80 Ohms at 100 MHz.
