MHL1ECTTP18NJ

$0.31

Description：RESISTOR
Series：MHL
Mfr：KOA Speer Electronics, Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:5ee0985c5767 Category: Fixed Inductors Brand: KOA Speer Electronics, Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RESISTOR
Series：MHL
Mfr：KOA Speer Electronics, Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Multilayer
Material - Core：Ceramic
Inductance：18 nH
Tolerance：±5%
Current Rating (Amps)：300 mA
Current - Saturation (Isat)：-
Shielding：Unshielded
DC Resistance (DCR)：650mOhm Max
Q @ Freq：8 @ 100MHz
Frequency - Self Resonant：2GHz
Ratings：-
Operating Temperature：-55°C ~ 125°C
Inductance Frequency - Test：-
Mounting Type：Surface Mount
Package / Case：0402 (1005 Metric)
Supplier Device Package：402
Size / Dimension：0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max)：0.024" (0.60mm)
Features：-

Download product information

MHL1ECTTP18NJ

Overview

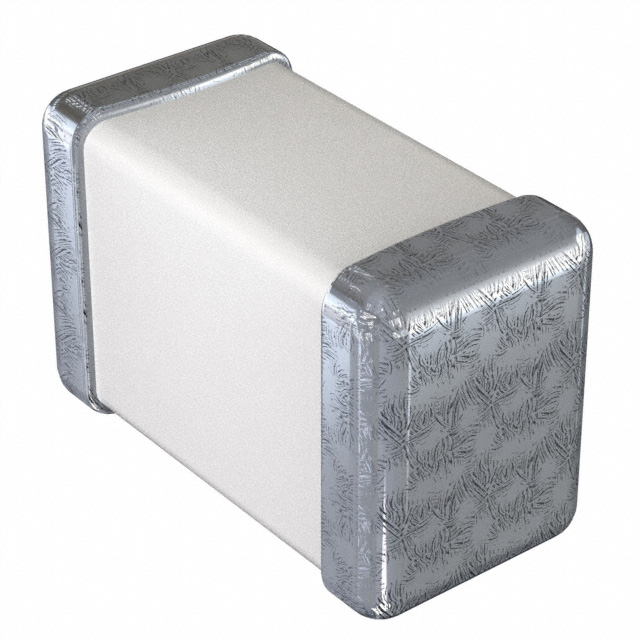

The MHL1ECTTP18NJ is a fixed multilayer RF inductor from the KOA Speer MHL series, designed for surface-mount applications. It features an unshielded construction within a compact 0402 (1005 metric) package measuring 1.0 mm x 0.5 mm x 0.60 mm. The component provides an inductance of 18 nH with a tolerance of ±5%. It supports a maximum DC current of 300 mA and exhibits a maximum DC resistance of 650 mOhms. The self-resonant frequency reaches 2 GHz, with a Q factor of 8 at 100 MHz. Operating temperatures range from -55°C to +125°C.

Feature Summary

Unshielded multilayer ceramic construction optimized for high-frequency RF signal integrity
Compact 0402 footprint enabling dense PCB layout for wireless communication modules
High self-resonant frequency capability supporting ultra-high frequency circuit designs

Applications

RF matching networks in wireless communication devices
Impedance matching circuits in mobile phone antenna systems
Filter components in cellular module input/output stages

Procurement Notes

Verify the specific manufacturer part number against official KOA Speer documentation to confirm electrical parameters and package dimensions. Ensure compatibility with surface-mount assembly processes. Check RoHS compliance status through certified datasheets. Confirm availability through authorized distributors as supply chain conditions may vary.

Selection Notes

Select this component when designing circuits requiring low-inductance RF chokes in space-constrained environments. The 0402 package size suits applications with limited board area. Consider the 300 mA current rating and 650 mOhm resistance for power handling requirements. Evaluate the 2 GHz self-resonant frequency against the target operating frequency to ensure effective performance.

Part Context

This component belongs to the KOA Speer MHL series of RF inductors. The series utilizes multilayer ceramic technology to provide stable inductance values for radio frequency applications. These components are engineered for reliability in consumer electronics and telecommunications equipment where small form factors and consistent electrical characteristics are critical.
