Product Detailed Parameters
- Description：14 pin DIP, 5.0 Volt, HCMOS/TTL,
- Series：MHO+
- Mfr：MtronPTI
- Package：Bulk
- Base Resonator：Crystal
- Type：XO (Standard)
- Frequency：32.125 kHz
- Function：-
- Output：HCMOS, TTL
- Voltage - Supply：5V
- Frequency Stability：±100ppm
- Absolute Pull Range (APR)：-
- Operating Temperature：-40°C ~ 85°C
- Spread Spectrum Bandwidth：-
- Current - Supply (Max)：15mA
- Ratings：-
- Mounting Type：Through Hole
- Package / Case：14-DIP, 4 Leads (Full Size, Metal Can)
- Size / Dimension：0.819" L x 0.520" W (20.80mm x 13.20mm)
- Height - Seated (Max)：-
- Supplier Device Package：-
Download product information
Overview

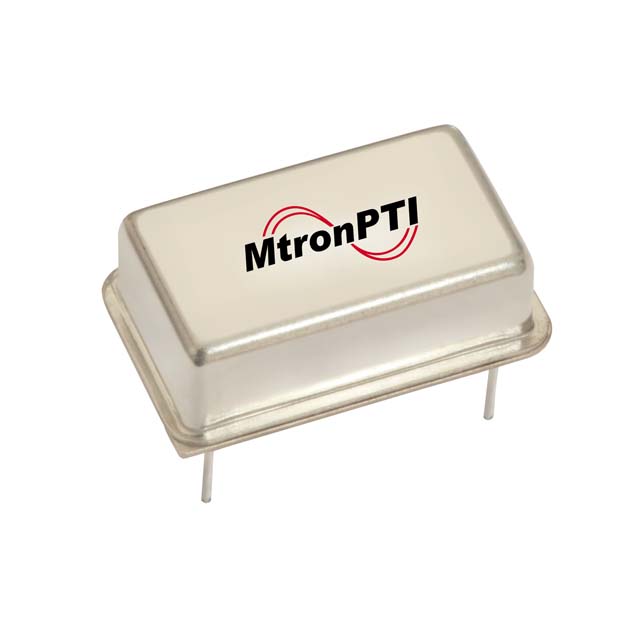

The MHO+23FAD 0.032125 is a standard crystal oscillator manufactured by MtronPTI, operating at a frequency of 32.125 kHz. It utilizes HCMOS and TTL compatible output logic levels, ensuring broad digital interface compatibility. The device is powered by a single 5V supply voltage. It is housed in a 14-pin Dual In-line Package (DIP) with four leads, constructed as a full-size metal can enclosure. This configuration provides robust mechanical protection and shielding against electromagnetic interference, suitable for environments requiring reliable clock signal generation.
Feature Summary
- HCMOS and TTL compatible output logic for versatile digital integration
- Full-size metal can package providing enhanced environmental shielding
- Standard 5V single-supply operation
Applications
- General purpose clock signal generation
- Digital system timing references
- Industrial control equipment
Procurement Notes
Verify the exact part number suffix to confirm frequency and package variations. Ensure the procurement source is an authorized distributor to guarantee component authenticity. Check datasheet specifications for operating temperature ranges and load requirements before integration into final designs.
Selection Notes
Select this component when a stable 32.125 kHz reference is required with HCMOS/TTL outputs. The 14-pin DIP metal can format is ideal for through-hole mounting applications needing high durability. Consider power consumption and physical footprint constraints relative to alternative SMT packages.
Part Context
This oscillator belongs to the MHO series from MtronPTI, designed for standard clocking applications. The series typically offers various frequencies and packaging options. The metal can construction distinguishes it from plastic-encased variants, offering superior protection against moisture and contaminants in harsh operational settings.
Replacement Considerations
Direct replacements must match the 32.125 kHz frequency, 5V supply, and 14-pin DIP metal can form factor. Verify pinout compatibility and output logic levels. Cross-reference with other MtronPTI models or industry-standard equivalents that meet these specific electrical and mechanical parameters.
