MI0805J102R-10

Overview

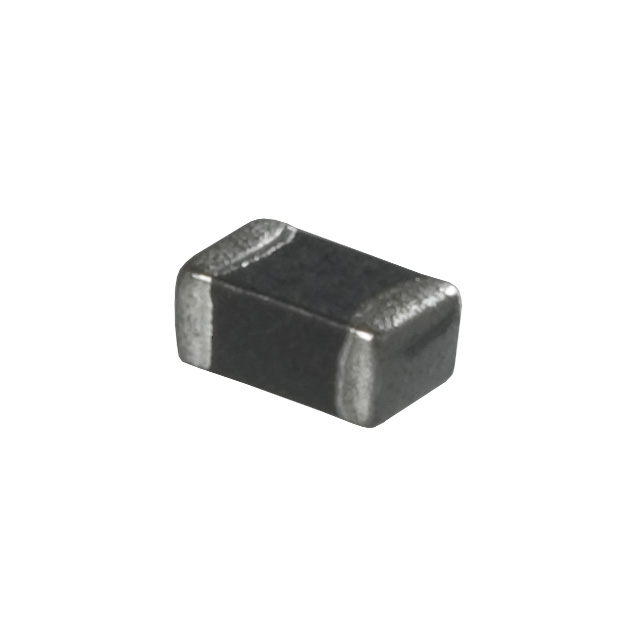

The MI0805J102R-10 is a monolithic ferrite chip bead designed for surface mount applications in the 0805 (2012 metric) package. It provides an impedance of 1 kOhms at 100 MHz with a maximum DC resistance of 150 mOhms and a current rating of 1A. The component operates within a temperature range of -40°C to +125°C.

Feature Summary

• Provides high impedance filtering for power and signal lines
• Monolithic construction ensures reliability in surface mount processes
• Compact 0805 footprint suitable for space-constrained designs

Applications

• Power line noise suppression
• Signal line EMI filtering
• High-frequency circuit protection

Procurement Notes

Verify RoHS compliance status through official manufacturer documentation, as sources indicate varying regulatory classifications. Confirm the active part status and lead times directly with Laird-Signal Integrity Products or authorized distributors prior to procurement planning.

Selection Notes

Select this component when 1 kOhms impedance at 100 MHz is required for single-line filtering. Ensure the 1A current rating meets the circuit's operational demands and that the 0805 package dimensions fit the PCB layout constraints.

Part Context

This ferrite bead belongs to the MI series from Laird-Signal Integrity Products, which offers various impedance values and current ratings in standard surface mount packages for electromagnetic interference suppression in electronic circuits.

Replacement Considerations

MI0805K110R-10 is listed as a direct substitute by the manufacturer.
