MIC24055YJL-TR is listed in the Voltage Regulators - DC DC Switching Regulators range at ChipApex. The manufacturer field lists Microchip Technology. Its product description is IC REG BUCK ADJ 12A 28QFN. Review the specifications below when checking this part for your BOM.
Voltage Regulators - DC DC Switching Regulators specifications for MIC24055YJL-TR
- Description：IC REG BUCK ADJ 12A 28QFN
- Series：Hyper Speed Control®, SuperSwitcher II™
- Mfr：Microchip Technology
- Package：Tape & Reel (TR),Cut Tape (CT)
- Function：Step-Down
- Output Configuration：Positive
- Topology：Buck
- Output Type：Adjustable
- Number of Outputs：1
- Voltage - Input (Min)：4.5V
- Voltage - Input (Max)：19V
- Voltage - Output (Min/Fixed)：0.8V
- Voltage - Output (Max)：5.5V
- Current - Output：12A
- Frequency - Switching：600kHz
- Synchronous Rectifier：Yes
- Operating Temperature：-40°C ~ 125°C (TJ)
- Mounting Type：Surface Mount

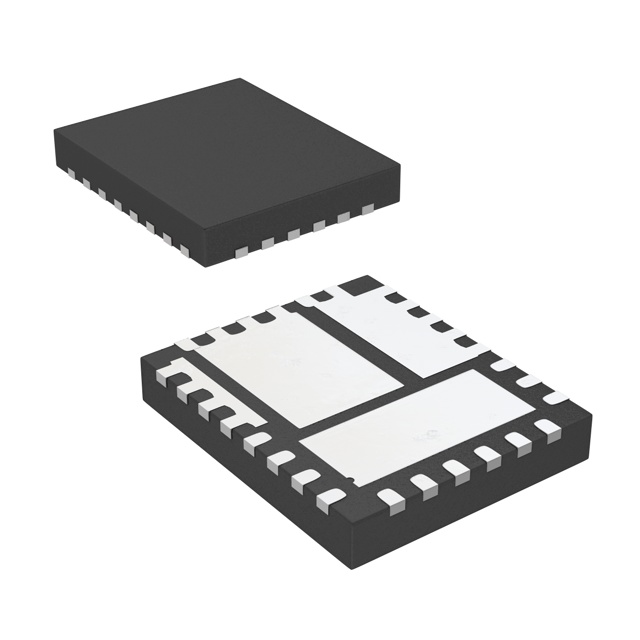

- Package / Case：28-PowerVQFN
- Supplier Device Package：28-QFN (5x6)
- Grade：-
- Qualification：-
Voltage Regulators - DC DC Switching Regulators datasheet and documents for MIC24055YJL-TR
Voltage Regulators - DC DC Switching Regulators Overview
The MIC24055YJL-TR is a synchronous buck regulator from Microchip Technology, designed for high-efficiency DC-DC conversion. It accepts an input voltage range of 4.5V to 19V and provides an adjustable output voltage between 0.8V and 5.5V. The device delivers a maximum output current of 12A with a fixed switching frequency of 600kHz. It is housed in a 28-pin PowerVQFN package and operates within a temperature range of -40°C to +125°C.
Voltage Regulators - DC DC Switching Regulators Feature Summary
- Synchronous rectification architecture for enhanced efficiency
- Adjustable output voltage capability
- High current delivery capacity
Voltage Regulators - DC DC Switching Regulators Applications
- Industrial control systems
- Telecommunications infrastructure
- Point-of-load regulation
Voltage Regulators - DC DC Switching Regulators Procurement Notes
Verify the specific suffix YJL-TR against the official datasheet to confirm the 28-PowerVQFN package and tape-and-reel packing media. Ensure the required input voltage does not exceed 19V and the load current remains within the 12A limit. Confirm thermal management requirements for operation up to 125°C junction temperature.
Voltage Regulators - DC DC Switching Regulators Selection Notes
Select this component when a compact solution is needed for converting higher voltages down to low-voltage logic or processor rails. The 600kHz frequency allows for smaller passive components compared to lower-frequency alternatives. Verify that the application requires a single positive output channel and fits within the specified input window.
Voltage Regulators - DC DC Switching Regulators Part Context
This part belongs to the MIC24055 family of high-efficiency buck regulators. It is distinct from other Microchip power ICs by its specific 12A current rating and 19V maximum input specification. The YJL-TR designation indicates the specific package type and reel quantity configuration.
Voltage Regulators - DC DC Switching Regulators Replacement Considerations
Consult official substitution guides for compatible parts with similar input ranges and current capabilities. Direct replacements must match the 28-PowerVQFN footprint if board space is constrained.
