MIC2870YFT-TR

LED Driver IC Overview

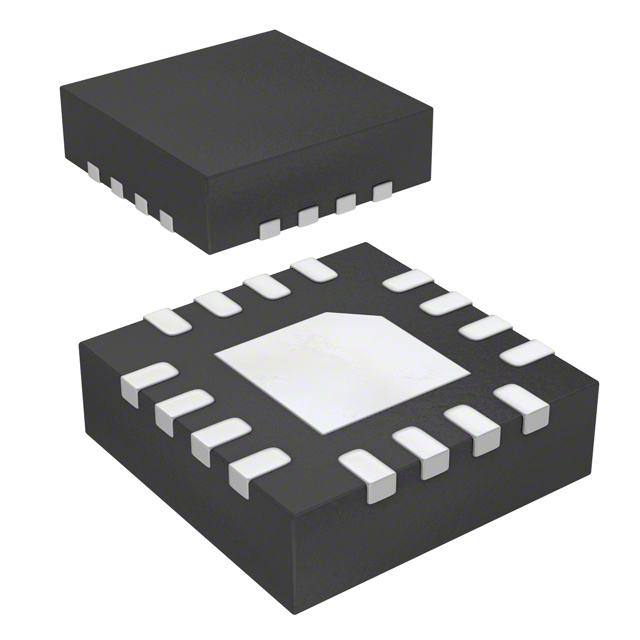

The MIC2870YFT-TR is a dual-channel high-brightness flash LED driver manufactured by Microchip Technology. It integrates a high-efficiency 2 MHz VF adaptive boost converter capable of delivering up to 1.5A per channel. The device operates within an input voltage range of 2.7V to 5.0V and supports I2C-controlled dimming for precise regulation. Designed for mobile applications, it features a compact 16-TQFN (2x2 mm) package and functions reliably across an operating temperature range of -40°C to +125°C.

LED Driver IC Feature Summary

• Integrates a high-efficiency 2 MHz VF adaptive boost driver for optimized power conversion
• Supports configurable one or two channel operation for flexible LED driving
• Enables precise brightness control through I2C-controlled dimming capabilities

LED Driver IC Applications

• Mobile phone camera flash systems
• Dual-channel high-brightness LED lighting
• Portable electronic devices requiring regulated LED drivers

LED Driver IC Procurement Notes

Verify the specific suffix 'YFT' corresponds to the 16-TQFN package and tape-and-reel packaging configuration. Confirm that the I2C address settings align with system requirements. Ensure thermal management strategies accommodate the 125°C junction temperature rating during high-current flash operations.

LED Driver IC Selection Notes

Select this component when dual independent LED channels are required within a small footprint. The 2 MHz switching frequency allows for smaller external inductors compared to lower-frequency alternatives. Verify input voltage stability between 2.7V and 5.0V to ensure proper boost converter operation without triggering undervoltage lockout.

LED Driver IC Part Context

This part belongs to the MIC2870 family of LED drivers designed for mobile multimedia applications. It replaces older discrete solutions by integrating power switches and control logic into a single IC. The TQFN package facilitates surface-mount assembly on dense PCB layouts typical in modern smartphones and tablets.

LED Driver IC Replacement Considerations

Check datasheets for MIC2870 variants with different package options or thermal ratings. Verify compatibility with existing I2C bus addresses if substituting within the same family.
