MIC2875-5.0YMT-TR

Voltage Regulators - DC DC Switching Regulators Overview

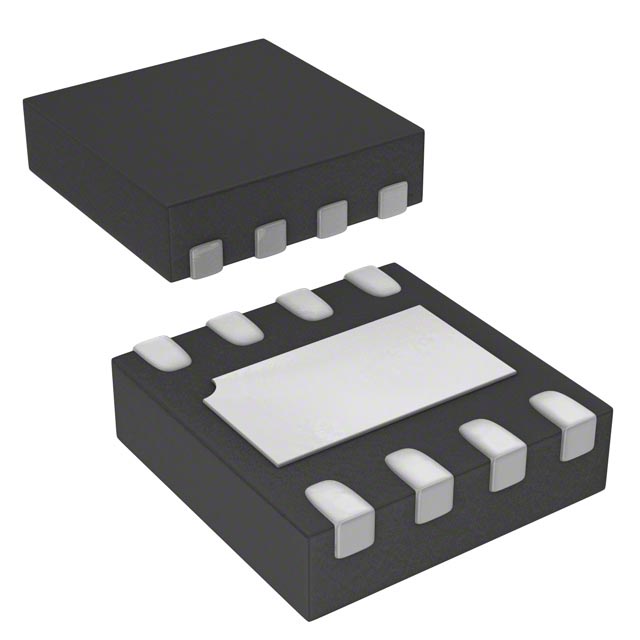

The MIC2875-5.0YMT-TR is an ultrasonic synchronous boost regulator from the Microchip MIC2875 series, designed for high-efficiency power conversion in compact applications. It operates with an input voltage range of 2.5 V to 5.5 V and provides a fixed 5 V output at up to 4.8 A. The device features a 2 MHz switching frequency and supports dual outputs. It functions within a temperature range of -40°C to +125°C and utilizes a TDFN-EP-8 package.

Voltage Regulators - DC DC Switching Regulators Feature Summary

• Ultrasonic synchronous boost topology for high efficiency
• Dual output capability for multi-rail systems
• Integrated shutdown control for power management

Voltage Regulators - DC DC Switching Regulators Applications

• Portable electronic devices requiring efficient step-up regulation
• Battery-powered systems needing stable 5V supply
• Compact consumer electronics with space constraints

Voltage Regulators - DC DC Switching Regulators Procurement Notes

Verify the specific suffix (T5 vs TR) against your Bill of Materials, as packaging formats differ between cut tape and reel. Confirm RoHS compliance status through official Microchip documentation prior to integration. Ensure ESD handling protocols are followed due to the exposed pad thermal package design.

Voltage Regulators - DC DC Switching Regulators Selection Notes

Select this component when a fixed 5V output is required from a single-cell lithium battery or similar low-voltage source. The dual-output feature distinguishes it from single-output variants like the MIC2876. Consider the 4.8A current rating and 2MHz frequency for balancing size and performance needs.

Voltage Regulators - DC DC Switching Regulators Part Context

This part belongs to the MIC2875 family of ultrasonic synchronous boost regulators. It shares architectural similarities with the MIC2876 but offers dual outputs instead of a single channel. The '5.0' designation indicates a fixed 5V output, while the 'AYMT' variant offers adjustable output voltage.

Voltage Regulators - DC DC Switching Regulators Replacement Considerations

MIC2875-5.0YMT-T5 is a direct equivalent differing only in packaging format (cut tape vs reel). MIC2876-5.0YMT-T5 serves as a functional substitute if only a single output is required.
