MIC29512BT

Overview

The MIC29512BT is a high-current, high-accuracy low-dropout (LDO) voltage regulator manufactured by Microchip Technology. It features an adjustable positive output voltage with a minimum of 1.25V and a maximum input voltage of 30V. The device delivers up to 5A of output current with a typical dropout voltage of 0.6V at full load. It operates within a junction temperature range of -40°C to +125°C and includes comprehensive protection against overcurrent, overtemperature, reverse polarity, and transient spikes.

Feature Summary

• Utilizes Super Beta PNP process for fast transient recovery from input surges and load changes
• Provides TTL-compatible enable control for external on/off management
• Integrates robust protection mechanisms including overcurrent, overtemperature, and reverse polarity safeguards

Applications

• Battery-powered instrumentation systems requiring stable regulation
• Communications equipment needing high-current linear regulation
• Portable devices utilizing surface-mount or through-hole packaging options

Procurement Notes

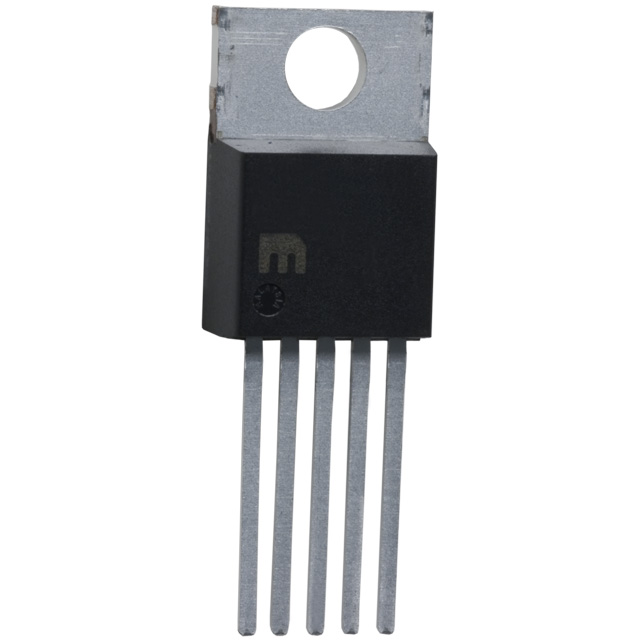

Verify the specific suffix 'BT' corresponds to the TO-220 package variant when sourcing. Confirm RoHS compliance status as historical data indicates potential non-compliance for older Micrel-branded iterations. Ensure the supplier provides official datasheets matching the Microchip Technology branding to avoid counterfeit components.

Selection Notes

Select this component when high current capability near 5A is required alongside precise voltage adjustment. Consider thermal management requirements due to power dissipation at high loads. Compare against fixed-output variants like MIC29510 if voltage flexibility is unnecessary. Evaluate package constraints between TO-220 and surface-mount options based on board layout needs.

Part Context

This part belongs to the MIC2951x family of high-performance LDO regulators designed for demanding applications. It succeeds earlier LP2951 designs with improved current handling and transient response capabilities. The family emphasizes reliability in portable and industrial environments where linear regulation efficiency and noise performance are critical.

Replacement Considerations

MIC29510BT serves as a fixed-output alternative within the same series. Cross-reference with LP2951ACMX for legacy compatibility, noting differences in current capacity and package type. Verify pinout compatibility before substituting with other 5A LDOs.
