MIC4120YME
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：IC GATE DRVR LOW-SIDE 8SOIC
- Series：-
- Mfr：Microchip Technology
- Package：Tube
- Driven Configuration：Low-Side
- Channel Type：Single
- Number of Drivers：1
- Gate Type：MOSFET (N-Channel, P-Channel)
- Voltage - Supply：4.5V ~ 20V
- Logic Voltage - VIL, VIH：0.8V, 2.4V
- Current - Peak Output (Source, Sink)：6A, 6A
- Input Type：Non-Inverting
- Rise / Fall Time (Typ)：12ns, 13ns
- Operating Temperature：-40°C ~ 125°C (TJ)
- Mounting Type：Surface Mount

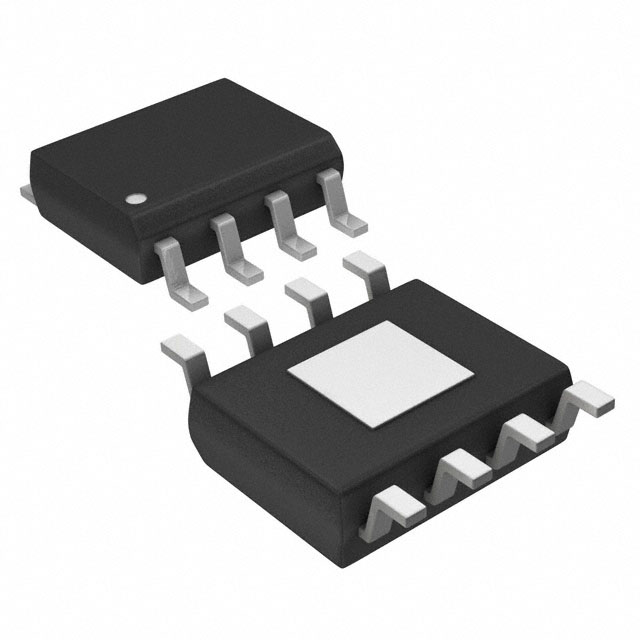

- Package / Case：8-SOIC (0.154", 3.90mm Width) Exposed Pad
- Supplier Device Package：8-SOIC-EP
- Grade：-
- Qualification：-
- High Side Voltage - Max (Bootstrap)：-
Download product information
Overview
The MIC4120YME is a single low-side MOSFET driver manufactured by Microchip Technology. It features a peak output current capability of 6A for both sourcing and sinking operations. The device utilizes a non-inverting input configuration to control external power switches. Typical propagation delays are characterized by rise and fall times of 12ns and 13ns, respectively. It operates within an extended temperature range from -40°C to +125°C. The component is housed in an SOIC-8 package with an exposed pad (EP) for enhanced thermal performance.
Feature Summary
- Provides high-current drive capability suitable for fast-switching applications
- Features non-inverting logic interface for direct signal control
- Designed with thermal management capabilities via exposed pad packaging
Applications
- Low-side switching for power MOSFETs
- High-speed gate driving in power conversion circuits
- Industrial motor control systems
Procurement Notes
Verify the specific suffix 'YME' corresponds to the SOIC-8-EP package variant when ordering. Confirm that the non-inverting input type aligns with the system logic requirements. Ensure the 6A peak current rating meets the load demands of the target MOSFET. Check for tape and reel availability if automated assembly is required.
Selection Notes
Select this component for applications requiring a single-channel low-side driver with high peak current. Consider the 12ns/13ns transition times for efficiency needs. The exposed pad design aids in heat dissipation for dense layouts. Verify compatibility with the control voltage levels before integration into the circuit design.
Part Context
This part belongs to the MIC4120 series of MOSFET drivers from Microchip. It serves as a dedicated interface between logic controllers and power stages. The series focuses on providing robust drive strength for efficient power management solutions in various electronic systems.
Replacement Considerations
The MIC4124YME is a dual-channel variant within the same family. Substitution requires verifying pinout compatibility and ensuring the dual-channel feature does not interfere with unused pins.
