MIC4604YM-TRVAO

Overview

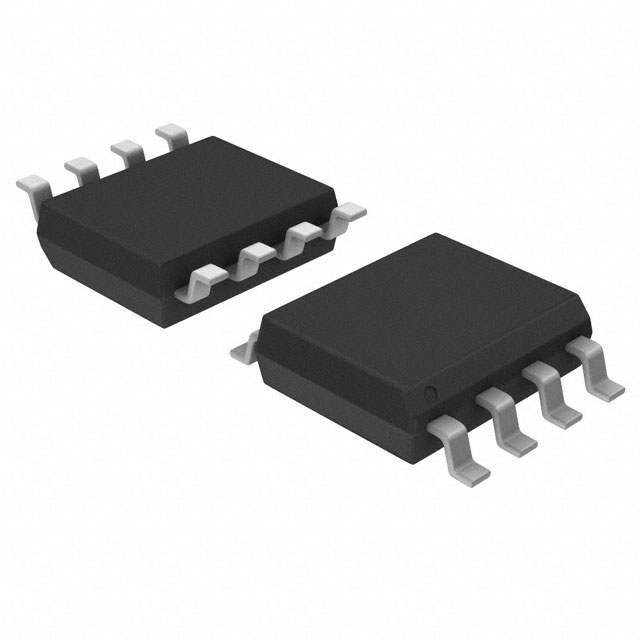

The MIC4604YM-TRVAO is an automotive-grade, 85V half-bridge MOSFET gate driver manufactured by Microchip Technology. It features a non-inverting logic interface and operates within a junction temperature range of -40°C to 125°C. The device is qualified under the AEC-Q100 standard for automotive applications. It utilizes an 8-pin SOIC surface-mount package and provides dual outputs for high-side and low-side switching control.

Feature Summary

• Automotive qualification compliant with AEC-Q100 standards
• Integrated high-side and low-side half-bridge configuration
• Non-inverting input logic interface

Applications

• Automotive power management systems
• High-side and low-side MOSFET switching control
• Industrial motor drive circuits

Procurement Notes

Verify that the specific suffix TRVAO corresponds to the AEC-Q100 automotive grade and 85V rating. Confirm the 8-SOIC package type matches the design footprint. Ensure the non-inverting logic requirement aligns with the system controller outputs before finalizing procurement.

Selection Notes

Select this component when an automotive-qualified half-bridge driver is required for 85V systems. It is suitable for designs needing AEC-Q100 compliance and non-inverting control signals. Consider the 8-SOIC package constraints and thermal dissipation capabilities relative to the PCB layout.

Part Context

This part belongs to the MIC4604 series of half-bridge gate drivers from Microchip Technology. The series includes variants such as MIC4604YM and MIC4604YM-TR, which share similar functional architectures but may differ in packaging, tape-and-reel specifications, or automotive qualification status.

Replacement Considerations

Direct substitutes include MIC4604YM and MIC4604YM-TR. Verify that alternative parts meet the same AEC-Q100 automotive qualification requirements and maintain compatibility with the 85V operating voltage and non-inverting logic interface.
