MIC4606-2YML-TR

Overview

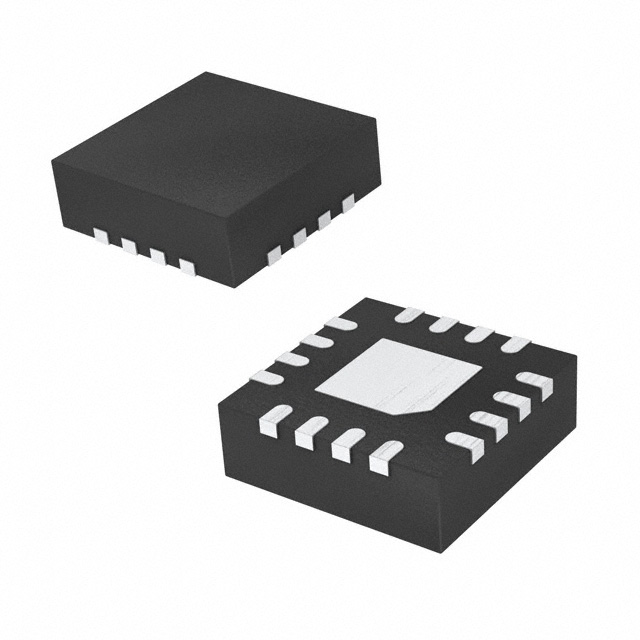

The MIC4606-2YML-TR is an 85V full-bridge MOSFET gate driver manufactured by Microchip Technology. It integrates adaptive dead-time circuitry and shoot-through protection to ensure reliable operation in high-voltage switching applications. The device supports a supply voltage range up to 85V and delivers a peak output current of 1A per channel. Designed for robust performance, it operates within a temperature range of -40°C to +125°C. The component is housed in a compact 16-QFN (4x4 mm) package, facilitating efficient thermal management and space-constrained PCB layouts.

Feature Summary

• Integrates adaptive dead-time control to optimize switching efficiency and minimize cross-conduction risks.
• Includes built-in shoot-through protection mechanisms to safeguard connected MOSFETs during transient states.
• Provides high-current drive capability suitable for powering large power-stage MOSFETs directly.

Applications

• Industrial motor drives requiring precise phase control
• High-frequency DC-DC converters with full-bridge topologies
• Inverter systems for renewable energy applications

Procurement Notes

Verify the specific suffix '2YML-TR' against the manufacturer's latest datasheet to confirm pinout compatibility and packaging details. Ensure that the 85V rating aligns with the system's maximum bus voltage requirements. Check for RoHS compliance status and moisture sensitivity levels prior to assembly planning.

Selection Notes

Select this component when designing circuits necessitating integrated dead-time adjustment rather than fixed delays. Consider the 1A output current capacity relative to the total gate charge of the target MOSFETs. Evaluate the thermal performance of the QFN package under expected load conditions to determine if additional heatsinking is required.

Part Context

This part belongs to Microchip's family of high-voltage gate drivers designed for power electronics. It complements lower-voltage variants like the MIC4600 series by offering extended voltage handling capabilities. The integration of protection features reduces external component count compared to discrete driver solutions.

Replacement Considerations

Direct substitutes may include other 85V full-bridge drivers from Microchip or competitors such as TI's UCC2753x series, provided pinouts and electrical characteristics match. Verify functional equivalence regarding adaptive dead-time behavior before substitution.
