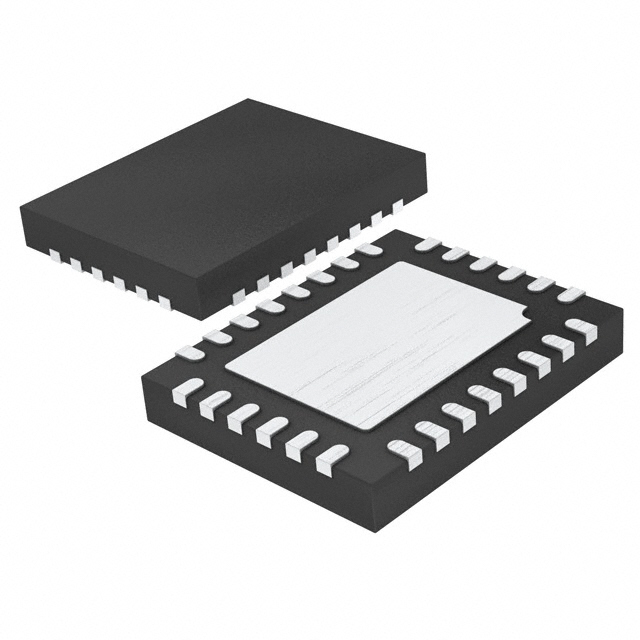

MIC4607-1YML-TR

$2.34

Description：IC GATE DRVR HALF-BRIDGE 28QFN
Series：-
Mfr：Microchip Technology
Package：Tape & Reel (TR)

SKU:6d366dc5a5e7 Category: Gate Drivers Brand: Microchip Technology

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IC GATE DRVR HALF-BRIDGE 28QFN
Series：-
Mfr：Microchip Technology
Package：Tape & Reel (TR)
Driven Configuration：Half-Bridge
Channel Type：3-Phase
Number of Drivers：6
Gate Type：MOSFET (N-Channel)
Voltage - Supply：5.5V ~ 16V
Logic Voltage - VIL, VIH：0.8V, 2.2V
Current - Peak Output (Source, Sink)：1A, 1A
Input Type：Non-Inverting
Rise / Fall Time (Typ)：20ns, 20ns
Operating Temperature：-40°C ~ 125°C (TJ)
Mounting Type：Surface Mount
Package / Case：28-VFQFN Exposed Pad
Supplier Device Package：28-QFN (4x5)
High Side Voltage - Max (Bootstrap)：85 V

Download product information

MIC4607-1YML-TR

Overview

The MIC4607-1YML-TR is a three-phase half-bridge MOSFET gate driver manufactured by Microchip Technology. It features six drivers with an output current of 1 A and operates within a supply voltage range of 5.25 V to 16 V. The device utilizes a VQFN-28 package and supports TTL logic inputs. Key timing parameters include rise and fall times of 20 ns, with maximum on/off delays and dead time set at 35 ns. Propagation delay reaches a maximum of 75 ns. It functions in a non-inverting configuration across an operating temperature range of -40°C to +125°C.

Feature Summary

Integrates adaptive dead time control to optimize switching performance.
Includes shoot-through protection mechanisms for enhanced circuit safety.
Supports high-voltage applications with up to 85V capability.

Applications

Three-phase motor drive systems
Industrial power conversion circuits
Inverter bridge control

Procurement Notes

Verify the specific suffix 'TR' indicates tape and reel packaging when sourcing. Confirm that the part number matches the active revision, as previous variants like MIC4607-1YML-T5 have been marked obsolete. Ensure compatibility with the required 28-VQFN footprint during procurement planning.

Selection Notes

Select this component for applications requiring integrated protection features such as adaptive dead time and shoot-through prevention. It is suitable for designs needing precise timing control with specified propagation delays. Consider the 1 A output current capability for driving standard MOSFET gates efficiently.

Part Context

This component belongs to the MIC4607 series of gate drivers designed for high-performance power management. It serves as a specialized solution for controlling three-phase half-bridge configurations. The device integrates multiple protection features into a compact surface-mount package.

Replacement Considerations

The variant MIC4607-1YML-T5 has been officially observed as obsolete. Verify if alternative packages or updated revisions from the manufacturer are available for direct substitution in existing designs.
