MIC4607A-2YMLVAO

Overview

The MIC4607A-2YMLVAO is an 85V three-phase MOSFET driver designed for high-speed switching applications. It features adaptive dead-time control and anti-shoot-through protection to ensure reliable operation. The device provides fast propagation delays of 35ns and rise/fall times of 20ns for a 1nF capacitive load. It supports independent high-side and low-side inputs or a single PWM input, with TTL-compatible logic thresholds. Integrated features include overcurrent protection with blanking time, a bootstrap diode, and undervoltage lockout for both high and low sides.

Feature Summary

• Adaptive dead-time and anti-shoot-through protection prevent simultaneous conduction in half-bridge configurations.
• Integrated overcurrent protection with programmable blanking time safeguards against short circuits.
• High-speed switching capabilities with 35ns propagation delay and 20ns rise/fall times minimize switching losses.
• Robust output stage withstands battery faults, sub-ground ringing, and high dv/dt conditions.

Applications

• Three-phase and BLDC motor drivers
• Automotive BLDC motor applications
• Three-phase inverters

Procurement Notes

Verify the complete part number MIC4607A-2YMLVAO against official Microchip documentation to confirm package type (VQFN) and tape-and-reel configuration. Ensure compatibility with AEC-Q100 automotive standards if required for your specific application environment. Cross-reference datasheet revision numbers to guarantee feature consistency.

Selection Notes

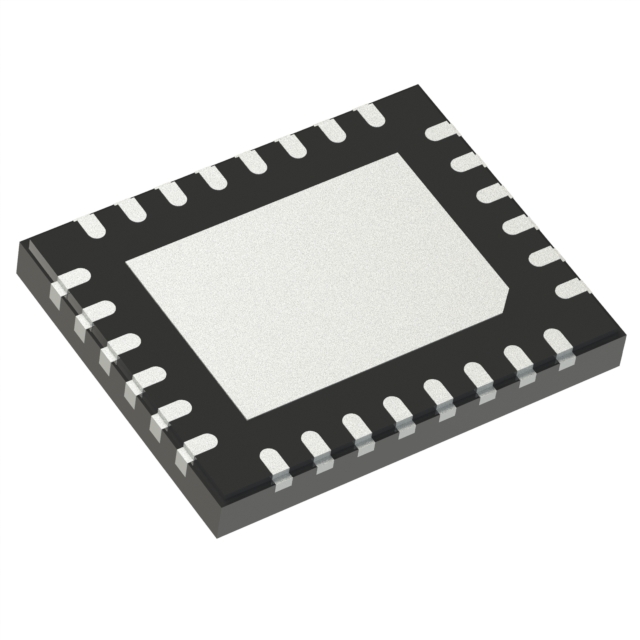

Select this component for applications requiring precise timing control in three-phase systems. The adaptive dead-time feature reduces power dissipation compared to fixed dead-time solutions. Verify that the gate drive supply voltage range (up to 16V) matches your MOSFET requirements. Consider the 28-pin VQFN package constraints for thermal management and PCB layout.

Part Context

This device belongs to Microchip's family of three-phase MOSFET drivers. It is specifically engineered for automotive and industrial motor control where reliability and efficiency are critical. The MIC4607A series integrates multiple protection functions typically found in discrete designs, simplifying the bill of materials and reducing board space.

Replacement Considerations

Check for MIC4607A-1YMLVAO as a potential variant within the same family. Confirm pinout and electrical specifications match before substitution. No other direct cross-references are documented in public sources.

FAQ

Does the MIC4607A support single PWM input mode?

Yes, the device accepts a single PWM input which internally generates the high-side and low-side drive signals with appropriate dead-time.

What is the maximum gate drive supply voltage?

The gate drive supply voltage can go up to 16V.
