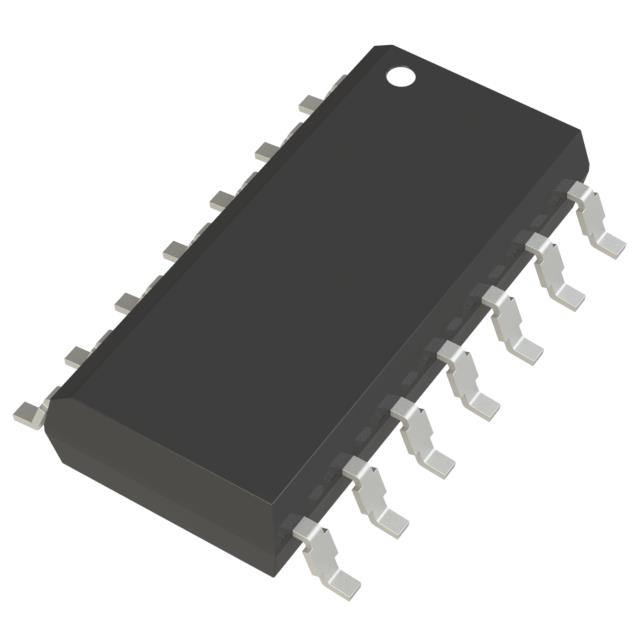

MIC4608YM

Overview

The MIC4608YM is a high-efficiency, synchronous step-down DC-DC converter from Microchip Technology. It integrates two N-channel power MOSFETs and a control circuit to provide regulated output voltage from an input supply ranging up to 36V. The device operates with a fixed switching frequency of 500kHz, enabling the use of small external inductors and capacitors. It features adjustable current limit protection and thermal shutdown for robust operation under fault conditions.

Feature Summary

• Integrated synchronous rectification with internal N-channel MOSFETs for high efficiency
• Wide input voltage range supporting various power bus architectures
• Fixed 500kHz switching frequency minimizes passive component size
• Built-in over-current and thermal protection mechanisms

Applications

• Point-of-load regulation for industrial equipment
• Power supplies for embedded systems and controllers
• Battery-powered devices requiring efficient voltage conversion

Procurement Notes

Verify the specific suffix 'YM' indicates the correct temperature grade and package type (SOIC-16) against the official datasheet. Confirm pinout compatibility if replacing legacy components. Ensure ordering documentation matches the manufacturer's latest revision to avoid discrepancies in electrical specifications or mechanical dimensions.

Selection Notes

Select this component when a compact, high-efficiency solution is required for converting higher input voltages to lower logic or analog rails. The integrated synchronous design reduces external component count compared to non-synchronous alternatives. Evaluate thermal performance based on expected load current and ambient conditions, as the SOIC-16 package has limited heat dissipation capabilities without adequate PCB copper area.

Part Context

This part belongs to Microchip's MIC460x series of synchronous buck converters. These devices are designed for applications demanding high efficiency and minimal footprint. The MIC4608 specifically targets general-purpose voltage regulation tasks where reliability and simplicity of implementation are prioritized over programmable frequency or advanced digital interfaces.

Replacement Considerations

Direct replacements must match the 36V input range, 500kHz frequency, and SOIC-16 package. Verify that substitute parts offer comparable peak current limits and thermal resistance. Cross-reference pinouts carefully, as functional equivalents may differ in control signal polarity or enable logic.
