MIC5504-2.8YMT-T5

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Overview

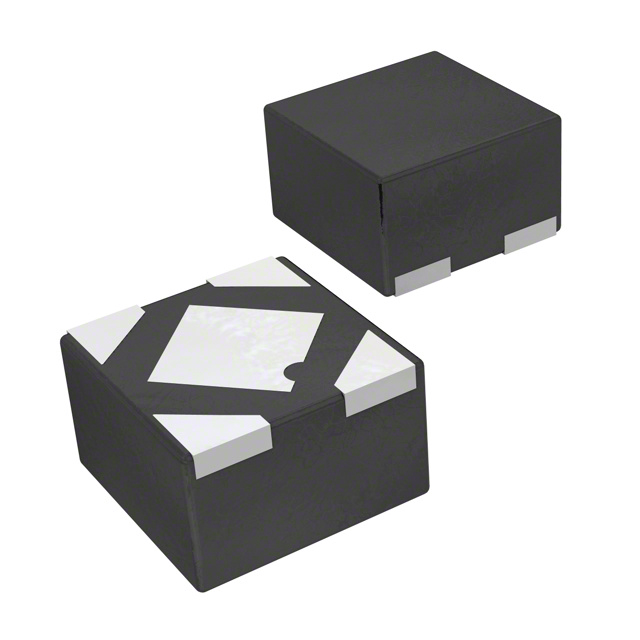

The MIC5504-2.8YMT-T5 is a single-output low-dropout (LDO) voltage regulator manufactured by Microchip Technology, providing a fixed 2.8V output with a guaranteed maximum load current of 300 mA. It operates within an input voltage range of 2.5 V to 5.5 V and maintains high output accuracy of ±2%. The device features a low quiescent ground current of typically 38 μA and achieves a dropout voltage of 160 mV at full load. Designed for stability with 1 μF ceramic capacitors, it includes auto-discharge functionality and an internal enable pull-down resistor. The component is housed in a compact 4-lead 1.0 mm x 1.0 mm Thin DFN package.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Feature Summary

• Includes an auto-discharge circuit that activates when the enable pin is low to discharge external capacitors.
• Features an internal pull-down resistor on the enable pin to disable the output when the control signal is floating.
• Provides linear current limiting and thermal shutdown protection against fault conditions.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Applications

• Smartphones
• Portable Electronics
• Medical Devices

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Procurement Notes

Verify the specific suffix T5 corresponds to the required reel quantity during procurement. Confirm the package type matches the design footprint requirements. Ensure the operating temperature range aligns with the application environment. Check for RoHS compliance status if mandated by project specifications. Validate the manufacturer source to ensure authenticity.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Selection Notes

Select this component for applications requiring a fixed 2.8V rail with moderate current demands up to 300 mA. The internal enable pull-down ensures safe startup states without external resistors. Verify that the input voltage remains within the specified 2.5 V to 5.5 V window. Consider the thermal resistance characteristics for ambient temperature calculations under full load conditions.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Part Context

This part belongs to the MIC550x family of advanced general-purpose LDO regulators designed for portable devices. The MIC5504 variant specifically combines auto-discharge capabilities with an internal enable pull-down feature. It shares the same ultra-small package form factor as other members in the series while offering distinct control logic configurations.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Replacement Considerations

MIC5504-2.8YMT-TR

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators FAQ

What happens to the output voltage when the enable pin is left floating?

The internal pull-down resistor automatically disables the output when the enable pin is left floating.

Is an external capacitor required for stability?

Yes, a minimum 1 μF ceramic output capacitor is required to maintain stability.
