Product Detailed Parameters
- Description：IC PWR DRIVER BIPOLAR 1:1 24SOIC
- Series：-
- Mfr：Microchip Technology
- Package：Tape & Reel (TR),Cut Tape (CT)
- Switch Type：Latched Driver
- Number of Outputs：8
- Ratio - Input:Output：1:01
- Output Configuration：Low Side
- Output Type：Bipolar
- Interface：Strobe, Parallel
- Voltage - Load：50V (Max)
- Voltage - Supply (Vcc/Vdd)：-
- Current - Output (Max)：500mA
- Rds On (Typ)：-
- Input Type：-
- Features：-
- Fault Protection：-
- Operating Temperature：-40°C ~ 85°C (TA)
- Mounting Type：Surface Mount
- Supplier Device Package：24-SOIC

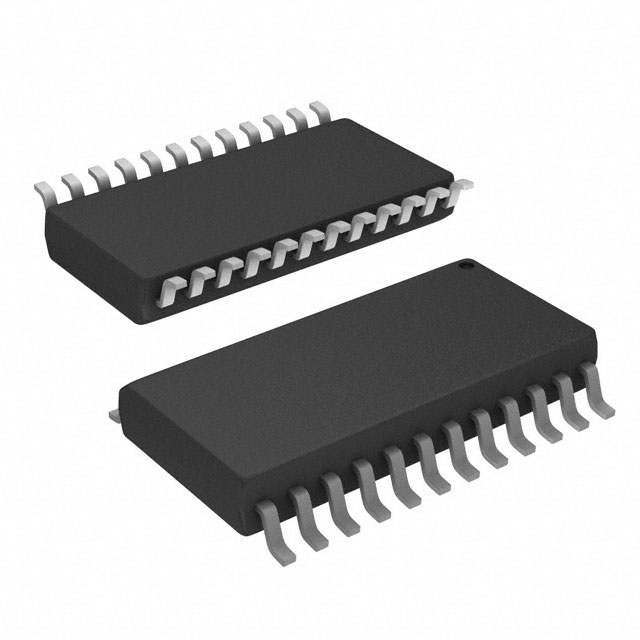

- Package / Case：24-SOIC (0.295", 7.50mm Width)
- Grade：-
- Qualification：-
Download product information
Overview
The MIC5801YWM-TR is a latch-based peripheral driver manufactured by Microchip Technology. It features eight channels with a 1:8 input-to-output ratio, delivering up to 500mA per output in a bipolar configuration. The device operates within a supply voltage range of 4.5V to 15V and supports load voltages from 5V to 50V. It utilizes parallel and serial interfaces for control. The component is housed in a 16-SOIC package and functions across an operating temperature range of -55°C to 125°C.
Feature Summary
- Integrates eight high-current bipolar outputs driven by CMOS data latches
- Supports both parallel and serial interface modes for flexible system integration
- Provides independent output enable functionality for each channel
Applications
- High-density LED matrix driving systems
- Industrial relay and solenoid control circuits
- Automotive lighting and accessory power distribution
Procurement Notes
Verify the specific suffix 'YWM' against the official datasheet to confirm the 16-SOIC package and commercial/industrial temperature grade. Ensure that the lead time and availability status are current, as distribution channels may vary. Confirm RoHS compliance requirements match the specific revision of the component being procured.
Selection Notes
Select this component when eight independent high-side switches with latched states are required. The 500mA output capability suits moderate load applications. Consider the 16-SOIC footprint for PCB layout constraints. Verify that the 50V load voltage rating exceeds the maximum expected circuit voltage during operation.
Part Context
This part belongs to the MIC5800/MIC5801 family of latch-based drivers. These ICs combine CMOS logic inputs with bipolar Darlington transistor outputs. The family provides a solution for controlling multiple loads without requiring individual discrete transistors for each channel, simplifying design complexity.
Replacement Considerations
The MIC5801BWM-TR is a related variant within the same product family. Verify pin compatibility and electrical specifications before substitution. Note that availability status may differ between these variants.
