MIC803-40D2VC3-TR

Supervisors Overview

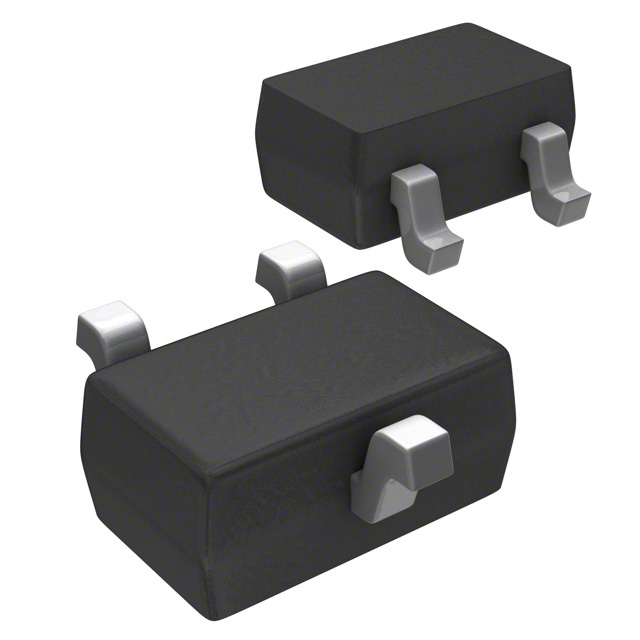

The MIC803-40D2VC3-TR is a voltage supervisory circuit manufactured by Microchip Technology, designed for monitoring single-input power rails. It operates within a supply voltage range of 1 V to 5.5 V and features a precise threshold voltage of 4 V with an accuracy of 2.5%. The device provides an open-drain reset output with a fixed reset delay time of 35 ms. It does not include manual reset, watchdog timer, or battery backup switching functions. The component is housed in a compact SC-70-3 surface-mount package and supports operation across an extended temperature range from -40°C to +125°C.

Supervisors Feature Summary

• Provides open-drain reset output for microprocessor supervision
• Operates over a wide supply voltage range from 1 V to 5.5 V
• Ensures high threshold accuracy for reliable voltage monitoring

Supervisors Applications

• Microprocessor supervisor circuits
• Voltage monitoring in portable electronics
• Battery-powered system protection

Supervisors Procurement Notes

Verify the specific suffix VC3 corresponds to the SC-70-3 package when sourcing. Confirm RoHS compliance status through official manufacturer documentation prior to integration. Ensure the open-drain output configuration matches the target system's pull-up requirements. Cross-reference the exact part number against current datasheets to validate pinout and electrical characteristics.

Supervisors Selection Notes

Select this component when a low-power, single-channel supervisor is required for voltages near 4 V. The SC-70-3 package offers space efficiency for dense layouts. Consider the 35 ms reset delay and lack of manual reset functionality during design. Verify that the 2.5% threshold accuracy meets the application's tolerance requirements.

Supervisors Part Context

This part belongs to the MIC803 series of simple reset supervisors from Microchip Technology. The series focuses on cost-effective voltage monitoring solutions for embedded systems. Variants within the family differ primarily in threshold voltage and package type. The MIC803 line is widely used in industrial and consumer applications requiring basic power management oversight.

Supervisors FAQ

Does the MIC803-40D2VC3-TR support manual reset?

No, this specific variant does not include a manual reset function.

What is the reset delay time for this supervisor?

The reset delay time is specified as 35 ms.
