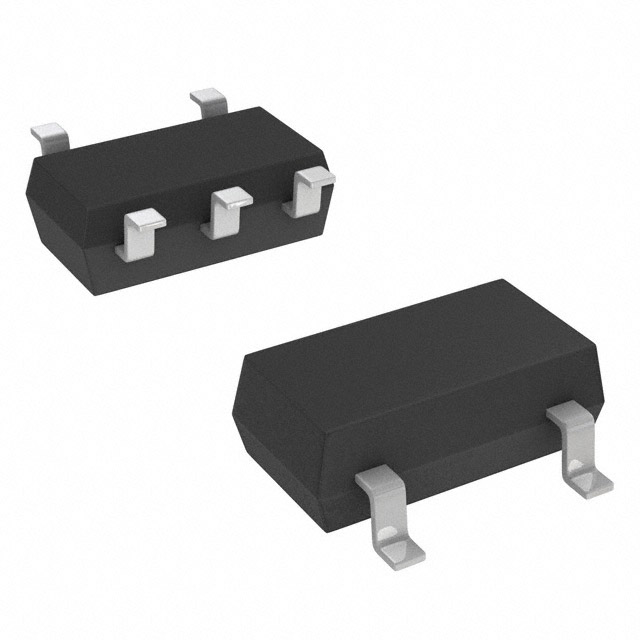

MIC921YC5-TR

$1.34

Description：IC OPAMP GP 1 CIRCUIT SC70-5
Series：-
Mfr：Microchip Technology
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:cc78aca99d91 Category: Instrumentation, Op Amps, Buffer Amps Brand: Microchip Technology

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

MIC921YC5-TR is listed in the Instrumentation, Op Amps, Buffer Amps range at ChipApex. The manufacturer field lists Microchip Technology. Its product description is IC OPAMP GP 1 CIRCUIT SC70-5. Review the specifications below when checking this part for your BOM.

Instrumentation, Op Amps, Buffer Amps specifications for MIC921YC5-TR

Description：IC OPAMP GP 1 CIRCUIT SC70-5
Series：-
Mfr：Microchip Technology
Package：Tape & Reel (TR),Cut Tape (CT)
Amplifier Type：General Purpose
Number of Circuits：1
Output Type：-
Slew Rate：3200V/µs
Gain Bandwidth Product：45 MHz
Current - Input Bias：130 nA
Voltage - Input Offset：400 µV
Current - Supply：360µA
Current - Output / Channel：-
Voltage - Supply Span (Min)：5 V
Voltage - Supply Span (Max)：18 V
Operating Temperature：-40°C ~ 85°C
Grade：-
Qualification：-
Mounting Type：Surface Mount
Package / Case：5-TSSOP, SC-70-5, SOT-353
Supplier Device Package：SC-70-5
-3db Bandwidth：61 MHz

Instrumentation, Op Amps, Buffer Amps datasheet and documents for MIC921YC5-TR

MIC921YC5-TR

Instrumentation, Op Amps, Buffer Amps Overview

The MIC921YC5-TR is a single-channel operational amplifier manufactured by Microchip Technology, formerly Micrel. It is housed in an SC-70-5 surface-mount package and operates as a general-purpose device with a bandwidth of 45MHz. The component features low power consumption and a maximum input offset voltage of 5mV. It is designed for applications requiring small form factors and efficient energy usage in portable electronics.

Instrumentation, Op Amps, Buffer Amps Feature Summary

Compact SC-70-5 surface-mount packaging for space-constrained designs
Low-power operation suitable for battery-driven systems
General-purpose functionality with 45MHz bandwidth

Instrumentation, Op Amps, Buffer Amps Applications

Portable consumer electronics
Battery-powered instrumentation
Signal conditioning circuits

Instrumentation, Op Amps, Buffer Amps Procurement Notes

Verify the current lifecycle status before procurement, as availability may vary. Confirm that the SC-70-5 package matches your PCB footprint requirements. Ensure the operating voltage range aligns with your system design specifications. Check for any specific handling or storage conditions required for this component type.

Instrumentation, Op Amps, Buffer Amps Selection Notes

Select this component when a single op-amp with moderate bandwidth is needed in a minimal footprint. Consider the 45MHz gain-bandwidth product for signal processing needs. Evaluate the low-power characteristics against system energy constraints. Verify compatibility with the intended supply voltage range for optimal performance.

Instrumentation, Op Amps, Buffer Amps Part Context

This part belongs to the MIC921 series of low-power operational amplifiers from Microchip's Micrel acquisition line. It serves as a compact alternative to larger packages while maintaining essential performance metrics for general analog signal processing tasks in modern electronic devices.
