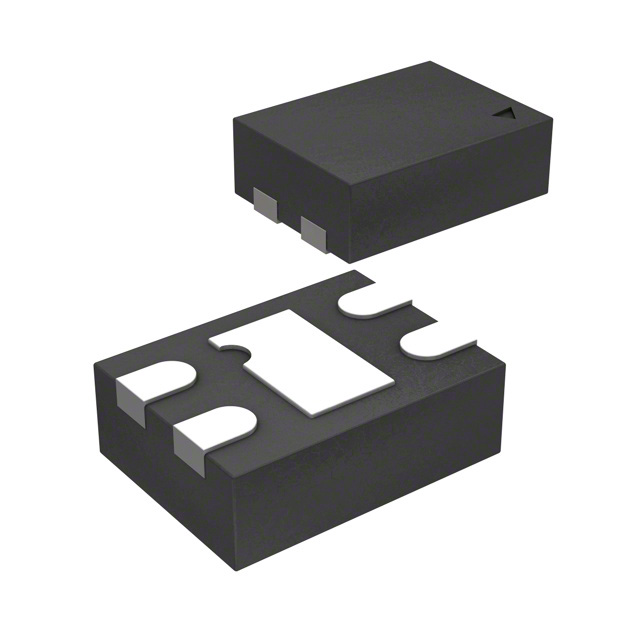

MIC94300YMT-TR

$0.31

Description：IC PWR SWITCH N-CHAN 1:1 4TMLF
Series：Ripple Blocker™
Mfr：Microchip Technology
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:3f61989c4aca Category: Power Distribution Switches, Load Drivers Brand: Microchip Technology

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IC PWR SWITCH N-CHAN 1:1 4TMLF
Series：Ripple Blocker™
Mfr：Microchip Technology
Package：Tape & Reel (TR),Cut Tape (CT)
Switch Type：General Purpose
Number of Outputs：1
Ratio - Input:Output：1:01
Output Configuration：High Side
Output Type：N-Channel
Interface：On/Off
Voltage - Load：1.8V ~ 3.6V
Voltage - Supply (Vcc/Vdd)：Not Required
Current - Output (Max)：200mA
Rds On (Typ)：-
Input Type：Non-Inverting
Features：-
Fault Protection：Current Limiting (Fixed), Over Temperature
Operating Temperature：-40°C ~ 125°C (TJ)
Mounting Type：Surface Mount
Supplier Device Package：4-TMLF® (1.2x1.6)
Package / Case：4-UFDFN Exposed Pad, 4-TMLF®
Grade：-
Qualification：-

Download product information

MIC94300YMT-TR

Overview

The MIC94300YMT-TR is a Microchip Technology integrated load switch featuring Ripple Blocker active filter technology. It operates within an input voltage range of 1.8V to 3.6V and provides an output current of 200mA with a maximum current limit of 315mA. The device utilizes a 4-pin MLF package and supports surface mount installation. It functions as a high-side power switch with a maximum run time of 150us, designed for applications requiring high-frequency ripple attenuation.

Feature Summary

Incorporates Ripple Blocker active filter technology for high-frequency ripple attenuation
Replaces high-side switches and large filtering components to save board area
Provides voltage follower functionality for sensitive downstream circuits

Applications

RF applications requiring noise-sensitive power distribution
Systems where switching noise cannot be tolerated by downstream circuits
Compact designs replacing discrete inductors and capacitors

Procurement Notes

Verify the specific ordering suffix ensures the correct tape and reel configuration for automated assembly processes. Confirm that the component meets RoHS compliance requirements for your target market regulations. Ensure the supply chain source is authorized to guarantee authenticity and traceability of the Microchip Technology product.

Selection Notes

Select this component when board space constraints prevent the use of large passive filters. Choose the MIC94300YMT-TR for applications requiring precise voltage following with minimal ripple. Consider the 1.8V to 3.6V operating range to ensure compatibility with system power rails. Evaluate the 200mA output capability against peak load requirements.

Part Context

This part belongs to the MIC94300 family of integrated load switches from Microchip Technology. It is specifically engineered to address noise sensitivity in modern electronic systems. The device integrates active filtering capabilities directly into the load switch architecture, distinguishing it from standard power switches.
