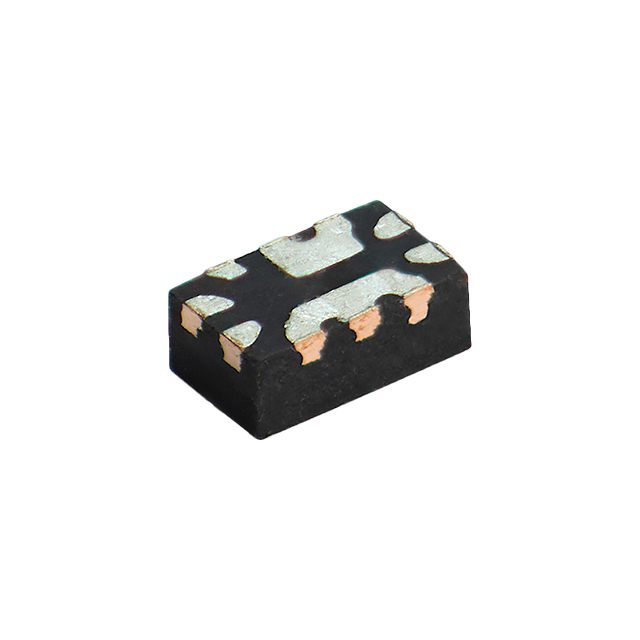

MIC95410YFL-T5
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：IC PWR SWITCH N-CHAN 1:1 10FQFN
- Series：-
- Mfr：Microchip Technology
- Package：Tape & Reel (TR)
- Switch Type：General Purpose
- Number of Outputs：1
- Ratio - Input:Output：1:01
- Output Configuration：High Side
- Output Type：N-Channel
- Interface：On/Off
- Voltage - Load：2.7V ~ 9V
- Voltage - Supply (Vcc/Vdd)：Not Required
- Current - Output (Max)：-
- Rds On (Typ)：6.6mOhm
- Input Type：Non-Inverting
- Features：Load Discharge, Slew Rate Controlled
- Fault Protection：-
- Operating Temperature：-40°C ~ 125°C (TJ)
- Mounting Type：Surface Mount
- Supplier Device Package：10-FQFN (1.2x2)
- Package / Case：10-PowerVFQFN
- Grade：-
- Qualification：-
Download product information
Overview
The MIC95410YFL-T5 is a high-side load switch manufactured by Microchip Technology. It features an N-channel MOSFET with a typical on-resistance of 6.6mΩ and supports a continuous load current of 7A. The device operates within a voltage range of 2.7V to 9V and utilizes a non-inverting input type. It is housed in a 10-lead FQFN package (10QFN) and includes load discharge functionality for safe power management.
Feature Summary
- High-side power distribution switching capability
- Low on-resistance for efficient power delivery
- Integrated load discharge feature
Applications
- Ultra-dense embedded computing boards
- High-current low-voltage rail management
- General-purpose power distribution switches
Procurement Notes
Verify the specific suffix T5 indicates reel packaging when ordering. Confirm the 10QFN package dimensions match your PCB footprint requirements. Ensure the 2.7V to 9V operating range aligns with your system's supply voltage constraints before finalizing procurement.
Selection Notes
Select this component for applications requiring a compact, high-current single-channel switch. The 6.6mΩ on-resistance minimizes power loss compared to higher resistance alternatives. Consider the 10QFN package size for space-constrained designs requiring efficient thermal performance.
Part Context
This part belongs to Microchip's family of high-side load switches designed for computing and embedded systems. It serves as a power distribution element, replacing discrete MOSFET solutions to save board space and simplify design implementation in modern electronic devices.
Replacement Considerations
Check for compatible parts from the same manufacturer series that offer similar current ratings and package types. Verify pin compatibility if substituting directly into existing footprints.
