MIMX8ML2DVNLZAB

Overview

The MIMX8ML2DVNLZAB is an industrial-grade i.MX 8M Plus QuadLite application processor featuring four Arm Cortex-A53 cores operating at 1.6 GHz and a single Cortex-M7 core running up to 800 MHz. It integrates a Neural Processing Unit (NPU) delivering 2.3 TOPS, dual Gigabit Ethernet controllers with one supporting Time Sensitive Networking (TSN), and two FlexCAN-FD interfaces. The device supports LPDDR4-4000 and DDR4-3200 memory with inline ECC for high reliability. It includes a Video Processing Unit capable of 1080p60 H.265/H.264 encode/decode, dual MIPI CSI camera inputs, and HDMI 2.0a output.

Feature Summary

• Industrial reliability ensured by DRAM inline ECC and internal SRAM ECC support.
• Real-time control capabilities provided by the integrated Cortex-M7 microcontroller.
• Advanced machine learning acceleration via the dedicated Neural Processing Unit (NPU).
• Robust connectivity through dual Gigabit Ethernet with TSN and dual CAN-FD interfaces.

Applications

• Industrial automation and Industry 4.0 gateways
• Smart building and city infrastructure systems
• Machine vision and AI-enabled security devices

Procurement Notes

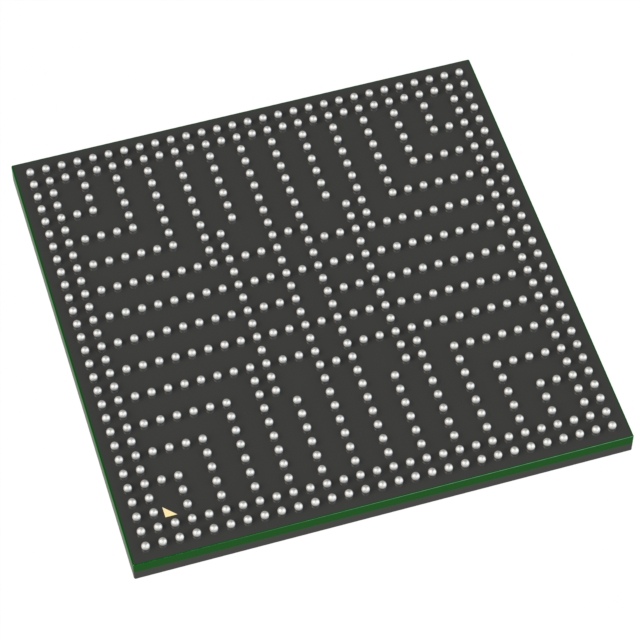

Verify that the specific part number matches the required silicon revision and qualification tier. Confirm that the package type corresponds to the FCBGA 15 x 15 mm form factor with 0.5 mm pitch. Ensure compatibility with the intended power supply requirements and thermal management solutions for the industrial temperature range.

Selection Notes

Select this model when industrial-grade reliability and deterministic networking are required. The inclusion of TSN-capable Ethernet and CAN-FD makes it suitable for time-critical control applications. The absence of the HiFi 4 DSP in this specific variant distinguishes it from higher-tier models, requiring assessment of audio processing needs against available software or external hardware solutions.

Part Context

This component belongs to the NXP i.MX 8M Plus family, designed for edge computing platforms. It serves as a versatile multicore solution bridging consumer multimedia features with industrial robustness. The QuadLite designation indicates the presence of four A53 cores without the full suite of multimedia accelerators found in the Quad variants, optimizing for cost-sensitive industrial deployments.

Replacement Considerations

Direct substitutes within the same package include other i.MX 8M Plus Industrial derivatives such as MIMX8ML3CVNKZAB or MIMX8ML4CVNKZAB, depending on whether ISP or NPU modules are required. Cross-family replacements like the i.MX 8M Mini or i.MX 8M Nano offer lower performance tiers but may require significant board redesign.
