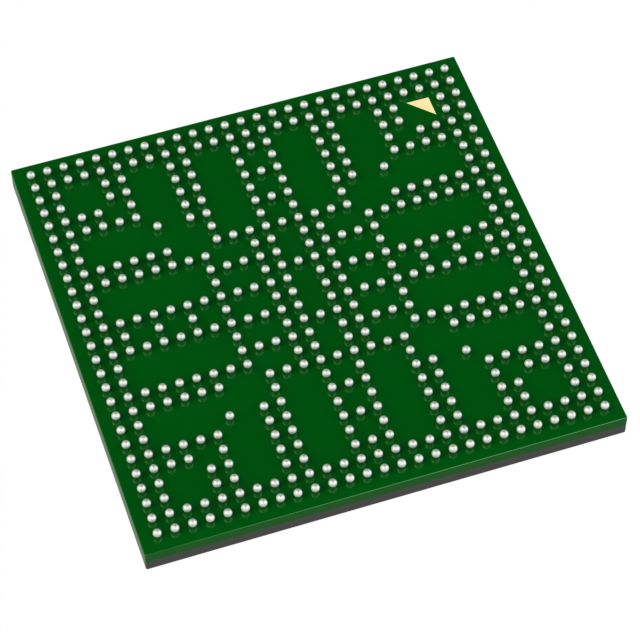

MIMX8MM2CVTKZAA

Overview

The MIMX8MM2CVTKZAA is an industrial-grade i.MX 8M Mini application processor built on 14LPC FinFET technology. It features a quad-core Arm Cortex-A53 platform with frequencies up to 1.8 GHz and a single Cortex-M4 core running at 400 MHz. The device includes a 3D GPU supporting OpenGL ES 2.0, video decoding capabilities for 1080p60 VP9, HEVC/H.265, AVC/H.264, and VP8, and encoding support for 1080p60 AVC/H.264 and VP8. Connectivity options include dual USB 2.0 controllers, PCIe 2.0, Gigabit Ethernet with AVB/IEEE 1588, MIPI DSI, and MIPI CSI interfaces.

Feature Summary

• Multicore processing architecture combining high-performance Cortex-A53 cores with a low-power Cortex-M4 core
• Integrated EdgeLock Assurance security plan for industry-standard protection
• Advanced multimedia engine supporting multiple high-definition video codecs and audio channels
• Flexible connectivity suite including PCIe, USB, and Gigabit Ethernet with time-sensitive networking

Applications

• Industrial building automation systems
• Mobile computers and handheld devices
• Consumer home audio equipment
• Internet of Things (IoT) edge nodes

Procurement Notes

Verify the specific suffix ZAA against the official NXP datasheet IMX8MMIEC to confirm industrial temperature range (-40°C to 105°C Tj) and package type (FCBGA). Ensure compatibility with required power management ICs such as PCA9420 or PCA9450. Confirm long-term supply availability through NXP’s 10 or 15-year longevity program before finalizing procurement plans.

Selection Notes

Select this component when fanless operation and low thermal design are critical for industrial environments. The 14LPC FinFET process offers superior power efficiency compared to previous generations. Choose this model over commercial variants if extended temperature ranges and robust security features via EdgeLock are mandatory for the target application's reliability requirements.

Part Context

This part belongs to the i.MX 8M Mini family, NXP's first embedded multicore application processor. It serves as a bridge between consumer electronics and industrial control applications. The family shares common architectural foundations but varies in memory interfaces, clock speeds, and peripheral counts. This specific industrial variant ensures stability in harsh operating conditions.

Replacement Considerations

Direct substitutes within the same industrial package include MIMX8MM3CVTKZAA, MIMX8MM4CVTKZAA, MIMX8MM5CVTKZAA, and MIMX8MM6CVTKZAA. These parts share identical pinouts and software compatibility but offer higher clock speeds or additional memory controller configurations. Verify that the upgraded performance levels do not exceed the thermal constraints of the existing system design.
