MIMX8MN1DVPIZAA

Overview

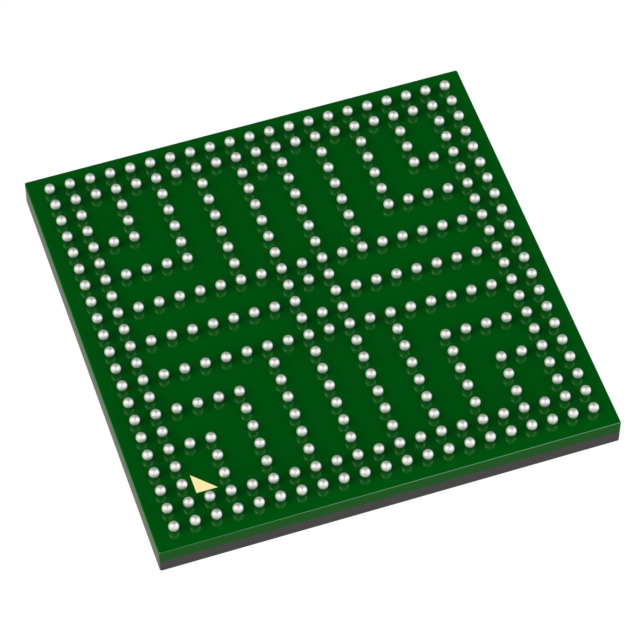

The MIMX8MN1DVPIZAA is an i.MX 8M Nano UltraLite Solo application processor featuring one Arm Cortex-A53 core running at 1.4 GHz and one Cortex-M7 core operating up to 750 MHz. It utilizes an 11x11 mm FCBGA-306 package with a 0.5 mm pitch. The device supports LPDDR4, DDR4, and DDR3L external memory interfaces. It includes integrated security modules such as CAAM, TrustZone, and HAB for secure boot and cryptographic acceleration.

Feature Summary

• Integrates a single Cortex-A53 application core and a Cortex-M7 low-power microcontroller core
• Provides hardware-accelerated multimedia processing via Media Processing Engine (MPE) and NEON technology
• Includes comprehensive security features including Cryptographic Acceleration and Assurance Module (CAAM), High Assurance Boot (HAB), and TrustZone architecture
• Supports flexible connectivity through Gigabit Ethernet, USB 2.0 OTG, and multiple serial interfaces

Applications

• Consumer home audio devices
• Industrial building automation systems
• Mobile computers and handheld terminals

Procurement Notes

Verify the specific silicon revision and fusing options required for your design, as indicated by the suffix in the part number. Confirm that the 11x11 mm FCBGA package footprint matches your PCB layout constraints. Ensure compliance with the consumer temperature range specifications during component sourcing.

Selection Notes

Select this part when a single-core solution is sufficient for the application workload. It offers a cost-effective alternative to higher-core-count variants within the i.MX 8M Nano family while retaining essential multimedia and security capabilities. Consider the absence of GPU and MIPI DSI interfaces when evaluating display requirements.

Part Context

This component belongs to the i.MX 8M Nano UltraLite sub-family, designed for applications requiring efficient processing without graphics-intensive tasks. It shares architectural similarities with other i.MX 8M processors but is optimized for lower power consumption and reduced peripheral count compared to the standard Nano series.

Replacement Considerations

MIMX8MN1DVTJZAA
