Product Detailed Parameters

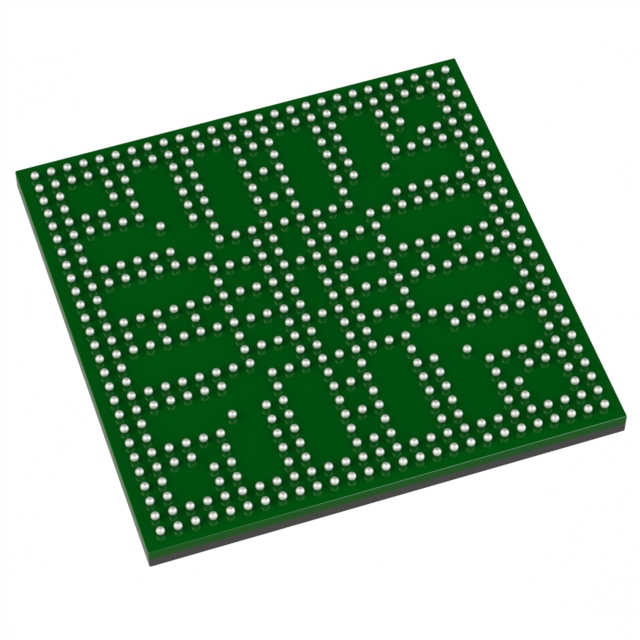

- Description：NANO SOLOLITE I.MX 8M LFBGA486
- Series：-
- Mfr：NXP USA Inc.
- Package：Tray
- Core Processor：-
- Number of Cores/Bus Width：-
- Speed：-
- Co-Processors/DSP：-
- RAM Controllers：-
- Graphics Acceleration：-
- Display & Interface Controllers：-
- Ethernet：-
- SATA：-
- USB：-
- Voltage - I/O：-
- Operating Temperature：-
- Security Features：-
- Mounting Type：Surface Mount
- Package / Case：486-VFBGA
- Supplier Device Package：486-FCPBGA (14x14)
- Additional Interfaces：-
- Grade：-
- Qualification：-
Download product information
Overview
The MIMX8MN2DUCJZAA is a microprocessor unit from the i.MX 8M Nano family, manufactured by NXP USA Inc. It features a dual-core Arm Cortex-A53 processor running at 1.0 GHz and an integrated Arm Cortex-M7 core for real-time control. The device supports LPDDR4 memory interfaces and includes a 2D GPU with OpenGL ES 2.0 capabilities. Connectivity options include USB 2.0 controllers, PCIe 2.0, Gigabit Ethernet, and MIPI display/camera interfaces. It operates within a commercial temperature range of 0°C to 95°C TJ and is housed in a 486-ball FCBGA package.
Feature Summary
- Dual-core Arm Cortex-A53 architecture combined with a dedicated Cortex-M7 core for mixed-signal processing tasks
- Integrated 2D graphics processing unit supporting standard embedded graphics APIs
- Support for high-speed peripheral connectivity including PCIe and Gigabit Ethernet
- Designed for fanless operation with optimized thermal performance for compact form factors
Applications
- Embedded consumer electronics requiring low power consumption
- Industrial IoT gateways and sensors
- Smart home audio and video devices
- Mobile computing terminals
Procurement Notes
Verify the specific suffix codes against official NXP documentation to confirm frequency, temperature grade, and package variant. Ensure compatibility with required memory types such as LPDDR4. Confirm that the selected component meets the target application's environmental operating conditions and regulatory compliance standards before procurement.
Selection Notes
Select this component when a balance of multimedia capability and real-time control is required in a small footprint. The dual-core A53 handles general-purpose computing while the M7 manages system control. Consider the limited video decoding capabilities compared to higher-tier i.MX 8M models when evaluating media playback requirements.
Part Context
This part belongs to the i.MX 8M Nano series, which targets cost-sensitive embedded applications. It shares the EdgeVerse platform foundation but offers reduced multimedia throughput compared to the Mini or Plus variants. The series emphasizes energy efficiency and long-term supply availability for industrial and consumer markets.
Replacement Considerations
Direct substitutes within the same family include other i.MX 8M Nano variants with different clock speeds or package options. Verify pin-to-pin compatibility and software driver support when migrating between closely related part numbers in the same series.
