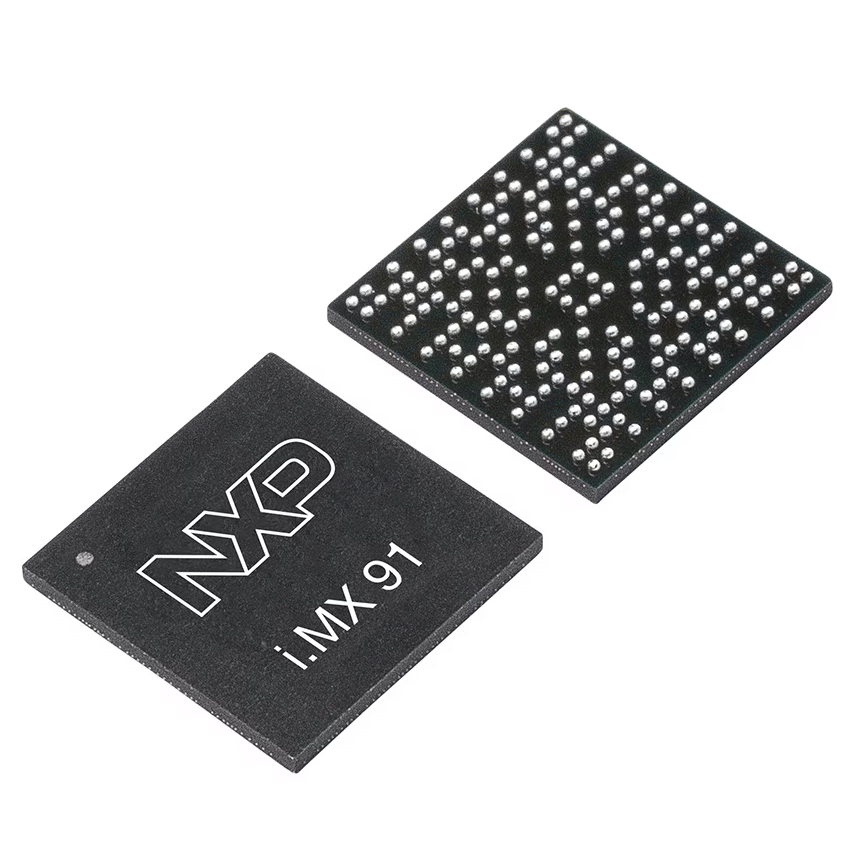

MIMX9101CVXXCAA

$7.49

Description：MIMX9101CVXXCAA
Series：-
Mfr：NXP USA Inc.
Package：Bulk

SKU:10c1e62e58e2 Category: Microprocessors Brand: NXP USA Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MIMX9101CVXXCAA
Series：-
Mfr：NXP USA Inc.
Package：Bulk
Core Processor：-
Number of Cores/Bus Width：-
Speed：-
Co-Processors/DSP：-
RAM Controllers：-
Graphics Acceleration：-
Display & Interface Controllers：-
Ethernet：-
SATA：-
USB：-
Voltage - I/O：-
Operating Temperature：-
Security Features：-
Mounting Type：-
Package / Case：-
Supplier Device Package：-
Additional Interfaces：-
Grade：-
Qualification：-

Download product information

MIMX9101CVXXCAA

Overview

The MIMX9101CVXXCAA is an industrial-grade application processor from the NXP i.MX 91 family. It features a single Arm Cortex-A55 core operating at up to 800 MHz with 32 KB L1 instruction and data caches, plus a 256 KB L2 cache. The device supports LPDDR4 memory interfaces running at up to 1.6 GT/s with inline ECC. Connectivity includes dual Gigabit Ethernet controllers (one supporting TSN), dual USB 2.0 ports, dual CAN-FD modules, eight LPUARTs, eight LPI2Cs, and eight LPSPIs. It operates within a junction temperature range of -40°C to 105°C.

Feature Summary

Integrates EdgeLock secure enclave for hardware-based security and tamper detection.
Supports Linux operating systems with optimized energy efficiency for edge applications.
Features dual Gigabit Ethernet interfaces with Time-Sensitive Networking capabilities.
Includes comprehensive I/O peripherals such as CAN-FD, USB 2.0, and multiple serial interfaces.

Applications

EV Charging Stations
Matter-enabled IoT Platforms
Smart Home and Building Automation
Industrial Monitoring and HMI
Portable Medical Devices

Procurement Notes

Verify the specific suffix 'CAA' against the official IMX91IEC datasheet ordering table to confirm silicon revision and fuse options. Ensure compatibility with the Industrial Products Data Sheet due to the 'C' temperature qualification. Confirm package dimensions match the 9x9 mm FCBGA specification listed for this segment.

Selection Notes

Select this part for cost-optimized systems requiring reduced performance compared to full-feature derivatives. The 800 MHz frequency limit applies to Low Drive mode operation only. Verify that the required peripheral count matches the specific configuration for the 9x9 mm package variant.

Part Context

This component belongs to the i.MX 91 series, designed as an entry point into the i.MX 9 family. It offers hardware and software compatibility with higher-end models like the i.MX 93, allowing for scalable product development. The series targets Linux-based IoT and industrial applications requiring secure, energy-efficient processing.
