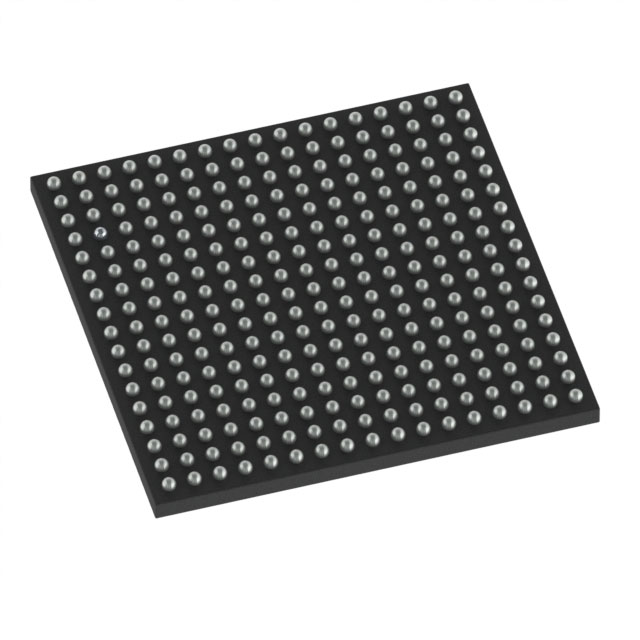

MIMXRT117CAVM8A

Overview

The MIMXRT117CAVM8A is an automotive-grade microcontroller from the i.MX RT1170 family, featuring a dual-core architecture with an Arm Cortex-M7 core operating at 400 MHz and an Arm Cortex-M4 core operating at 400 MHz. It includes 2 MB of on-chip RAM and supports external memory interfaces such as SDRAM, NAND Flash, and Octal SPI. The device integrates advanced security features including High Assurance Boot (HAB) and a Cryptographic Acceleration and Assurance Module (CAAM). Connectivity options include three FlexCAN-FD modules, two USB 2.0 OTG controllers, and multiple Ethernet interfaces supporting AVB and TSN.

Feature Summary

• Dual-core processing platform combining high-performance Cortex-M7 and power-efficient Cortex-M4 cores for real-time control and complex application execution.
• Integrated multimedia capabilities including MIPI CSI/DSI interfaces, 2D graphics acceleration, and dedicated audio processing modules like SAI and SPDIF.
• Comprehensive security suite featuring hardware-accelerated encryption, secure boot mechanisms, and physical unclonable function (PUF) support.
• Extensive peripheral connectivity supporting industrial protocols, high-speed serial interfaces, and flexible memory access for diverse system architectures.

Applications

• Industrial Human Machine Interfaces (HMI)
• Motor Control Systems
• High-end Audio Appliances
• Low-end Instrument Clusters

Procurement Notes

Verify the specific suffix 'C' indicates the industrial temperature grade (-40°C to +105°C) and 'A' denotes automotive qualification tier when sourcing. Confirm that the package type matches the 289-pin MAPBGA specification. Ensure compatibility with the i.MX RT1170AEC data sheet for automotive products. Check for any recent product change notifications affecting pinout or electrical characteristics before finalizing procurement.

Selection Notes

Select this component for applications requiring deterministic real-time performance alongside rich multimedia processing. The dual-core design allows separation of safety-critical tasks on the M4 core from user interface logic on the M7 core. Consider the integrated power management unit if minimizing external components is a priority. Evaluate the available security features against regulatory requirements for automotive or industrial deployments.

Part Context

This part belongs to the NXP i.MX RT1170 crossover processor family, designed to bridge the gap between application processors and microcontrollers. It targets high-performance embedded systems requiring low latency and high throughput. The series supports various memory configurations and offers scalable feature sets across different model numbers within the same package footprint.

Replacement Considerations

MIMXRT1176AVM8A

FAQ

What is the maximum operating frequency of the Cortex-M7 core in this specific variant?

In the MIMXRT117CAVM8A variant, the Arm Cortex-M7 core operates at a maximum frequency of 400 MHz.

Does this microcontroller support Time-Sensitive Networking (TSN)?

Yes, the MIMXRT117CAVM8A integrates one Gigabit Ethernet controller with Time-Sensitive Networking (TSN) capability.
