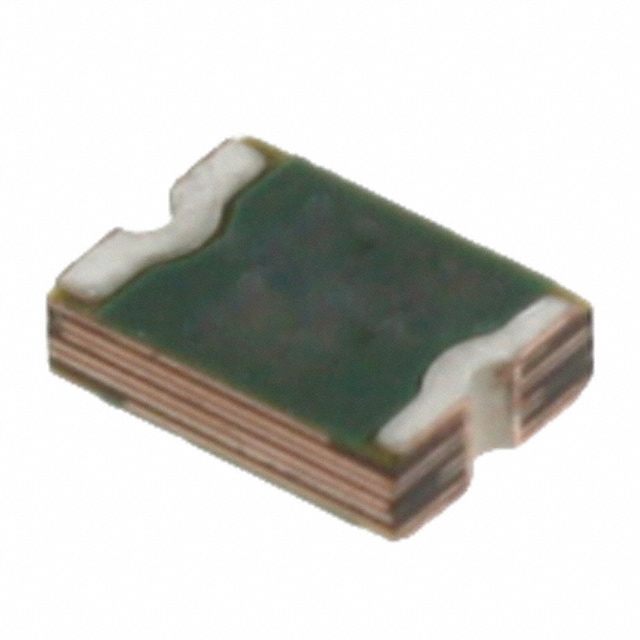

MINISMDC260F/16-2

$0.68

Description：PTC RESET FUSE 16V 2.6A 1812
Series：PolySwitch®, miniSMD
Mfr：Littelfuse Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:fcf1d31d0c11 Category: PTC Resettable Fuses Brand: Littelfuse Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：PTC RESET FUSE 16V 2.6A 1812
Series：PolySwitch®, miniSMD
Mfr：Littelfuse Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Polymeric
Voltage - Max：16V
Current - Hold (Ih) (Max)：2.6 A
Current - Trip (It)：5:00 AM
Current - Max：100 A
Time to Trip：5 s
Resistance - Initial (Ri) (Min)：15 mOhms
Resistance - Post Trip (R1) (Max)：50 mOhms
Resistance - 25°C (Typ)：-
Operating Temperature：-40°C ~ 85°C
Grade：-
Qualification：-
Ratings：-
Mounting Type：Surface Mount
Package / Case：1812 (4532 Metric), Concave
Size / Dimension：0.181" L x 0.128" W (4.60mm x 3.24mm)
Height - Seated (Max)：-
Thickness (Max)：0.060" (1.52mm)
Lead Spacing：-

Download product information

MINISMDC260F/16-2

Overview

The MINISMDC260F/16-2 is a PolySwitch PTC device manufactured by Littelfuse Inc. It features a maximum voltage of 16V and a hold current (Ih) of 2.6A. The trip current (It) is specified at 5.2A, with a maximum fault current rating of 40A. Initial resistance (Ri) is typically 25 mOhms, while post-trip resistance (R1) has a maximum value of 75 mOhms. The component operates within a temperature range of -40°C to 85°C and utilizes a surface-mount 1812 (4532 metric) package.

Feature Summary

Provides automatic circuit protection through polymer positive temperature coefficient technology
Offers resettable functionality after fault conditions are cleared
Designed for surface mount assembly in compact electronic circuits

Applications

Portable electronics power line protection
Automotive interior lighting circuits
Consumer appliance overcurrent safeguarding

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to ensure correct voltage and current ratings. Confirm that the requested variant matches the required 16V maximum voltage specification. Check for RoHS compliance status and moisture sensitivity level requirements prior to procurement. Ensure the package type aligns with the design layout specifications.

Selection Notes

Select this component based on the 2.6A hold current requirement and 16V system voltage. Consider the thermal environment to ensure operation within the -40°C to 85°C range. Evaluate the initial resistance impact on circuit performance. Verify compatibility with standard reflow soldering profiles for surface mount installation.

Part Context

This part belongs to the MINISMDC series of PolySwitch devices from Littelfuse. These components are designed as resettable fuses for circuit protection. The series offers various current and voltage ratings in surface mount packages. They serve as alternatives to traditional one-time fuses in modern electronic designs.
