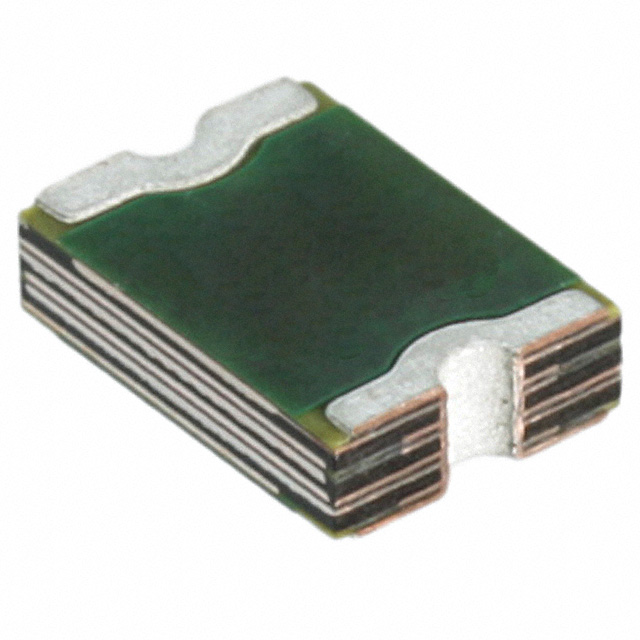

MINISMDC300F-2

$0.55

Description：PTC RESET FUSE 6V 3A 1812
Series：PolySwitch®, miniSMD
Mfr：Littelfuse Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:c1541ebc1beb Category: PTC Resettable Fuses Brand: Littelfuse Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：PTC RESET FUSE 6V 3A 1812
Series：PolySwitch®, miniSMD
Mfr：Littelfuse Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Polymeric
Voltage - Max：6V
Current - Hold (Ih) (Max)：3:00 AM
Current - Trip (It)：6:00 AM
Current - Max：100 A
Time to Trip：5 s
Resistance - Initial (Ri) (Min)：11 mOhms
Resistance - Post Trip (R1) (Max)：36 mOhms
Resistance - 25°C (Typ)：-
Operating Temperature：-40°C ~ 85°C
Grade：-
Qualification：-
Ratings：-
Mounting Type：Surface Mount
Package / Case：1812 (4532 Metric), Concave
Size / Dimension：0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max)：-
Thickness (Max)：0.030" (0.76mm)
Lead Spacing：-

Download product information

MINISMDC300F-2

Overview

The MINISMDC300F-2 is a PolySwitch resettable fuse from the miniSMD series, designed for surface-mount PCB applications. It features a 1812 (4532 metric) package with SMD/SMT termination. The device maintains a hold current of 3.0 A and trips at 6.0 A, supporting a maximum voltage of 24 VDC. It offers a high fault current rating of 40 A max and exhibits a typical resistance of 72 mOhms. Operating within a temperature range of -40°C to +85°C, it includes moisture sensitivity classification and is supplied in reel packaging.
